0008550130
ActiveMolex
CONN 22-30AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

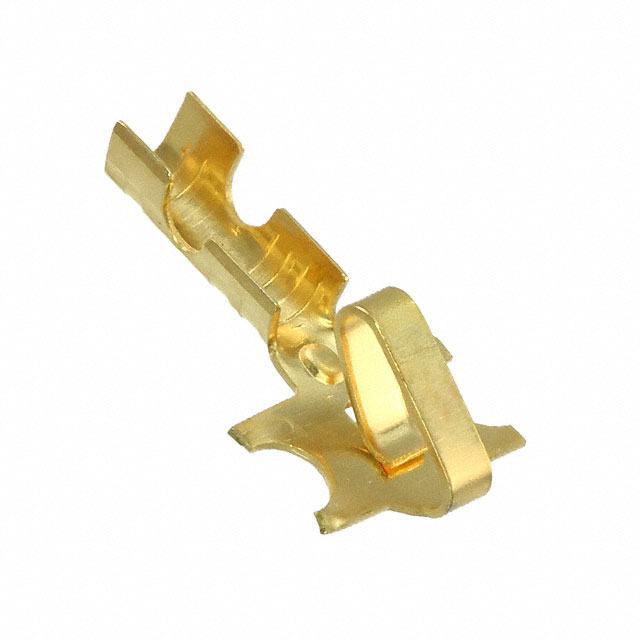

0008550130
ActiveMolex
CONN 22-30AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0008550130 | 000855 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 15 - 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Non-Gendered | Non-Gendered |
| Wire Gauge [Max] | 30 AWG | 20 - 30 AWG |
| Wire Gauge [Min] | 22 AWG | 17.5 - 22 AWG |
000855 Series
CONN 22-26AWG CRIMP GOLD
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Termination | Contact Finish |
|---|---|---|---|---|---|---|---|
Molex 0008550137 | 22 AWG | 26 AWG | 0.76 Ám | 30 Áin | Non-Gendered | Crimp | Gold |
Molex 0008550130 | 22 AWG | 30 AWG | 0.76 Ám | 30 Áin | Non-Gendered | Crimp | Gold |
Molex 0008550129 | 22 AWG | 30 AWG | 0.38 µm | 15 µin | Non-Gendered | Crimp | Gold |
Molex 0008550138 | 17.5 AWG | 20 AWG | 0.38 µm | 15 µin | Non-Gendered | Crimp | Gold |
Molex 0008550131 | 22 AWG | 30 AWG | 0.76 Ám | 30 Áin | Non-Gendered | Crimp | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.43 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.31 | |||
| Tape & Reel (TR) | 10000 | $ 0.20 | ||
Description
General part information
000855 Series
Non-Gendered Contact Gold 22-30 AWG Crimp
