104666-5

Active

TE Connectivity AMP Connectors

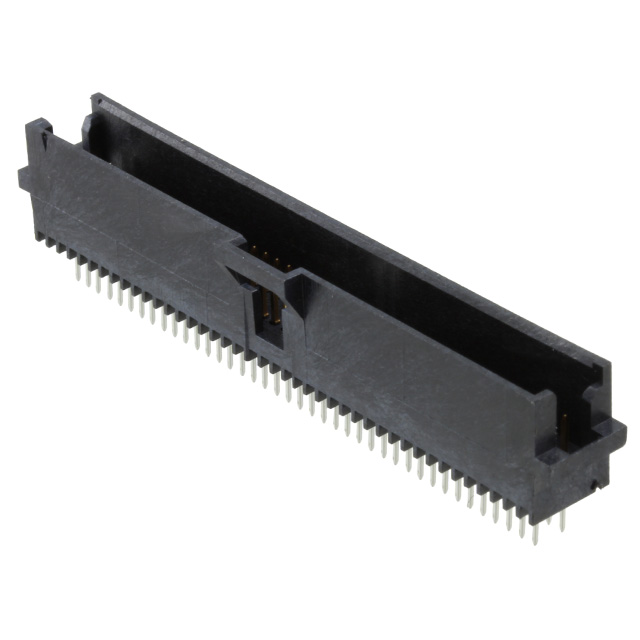

CONN HEADER VERT 80POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

104666-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 80POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104666-5	104666 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Mating	0.125 in	0.125 in
Contact Length - Mating	3.18 mm	3.18 mm
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Black	Black
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	80	24 - 100
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	756	$ 15.09

104666 Series

CONN HEADER VERT 16POS 1.27MM

Part	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Style	Termination	Contact Shape	Voltage Rating	Contact Type	Applications	Contact Material	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 5-104666-9	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm	16	9.91 mm	0.39 in	Tin	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold
TE Connectivity AMP Connectors 104666-4	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	50
TE Connectivity AMP Connectors 104666-3	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	40
TE Connectivity AMP Connectors 104666-5	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	80
TE Connectivity AMP Connectors 6-104666-1	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	26
TE Connectivity AMP Connectors 104666-6	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	100
TE Connectivity AMP Connectors 104666-2	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	30
TE Connectivity AMP Connectors 104666-7	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	60
TE Connectivity AMP Connectors 6-104666-0	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	24
TE Connectivity AMP Connectors 1-104666-1	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin-Lead	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	26
TE Connectivity AMP Connectors 5-104666-5	0.125 in	3.18 mm	Through Hole	Black	150 Áin	3.81 Ám	Header	-65 ░C	105 ░C	Shrouded - 2 Wall	0.145 in	3.68 mm		9.91 mm	0.39 in	Tin	All	Thermoplastic	0.05 in	1.27 mm	Board to Board, Cable	Solder	Circular	30 VAC	Male Pin	Automotive, General Purpose, Medical, Telecommunications	Copper Alloy	Latch Holder	2.54 mm	0.1 in	2	UL94 V-0	30 Áin	0.76 Ám	Gold	80

Description

General part information

104666 Series

Connector Header Through Hole 80 position 0.050" (1.27mm)
