ActiveTE Connectivity AMP Connectors
SMC JACK RA PANEL MNT THRU HOLE 10 GHZ
2477170-1
ActiveTE Connectivity AMP Connectors
SMC JACK RA PANEL MNT THRU HOLE 10 GHZ
Description
General part information
2477170-1

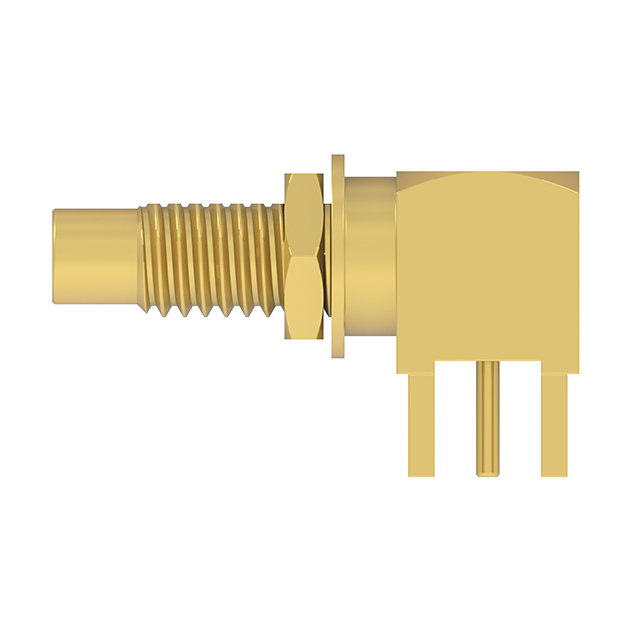

SMC Connector, Jack, 50 ohm, Threaded, 0 – 10 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount & Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2477170-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMC |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
