2485928-1
ActiveTE Connectivity AMP Connectors

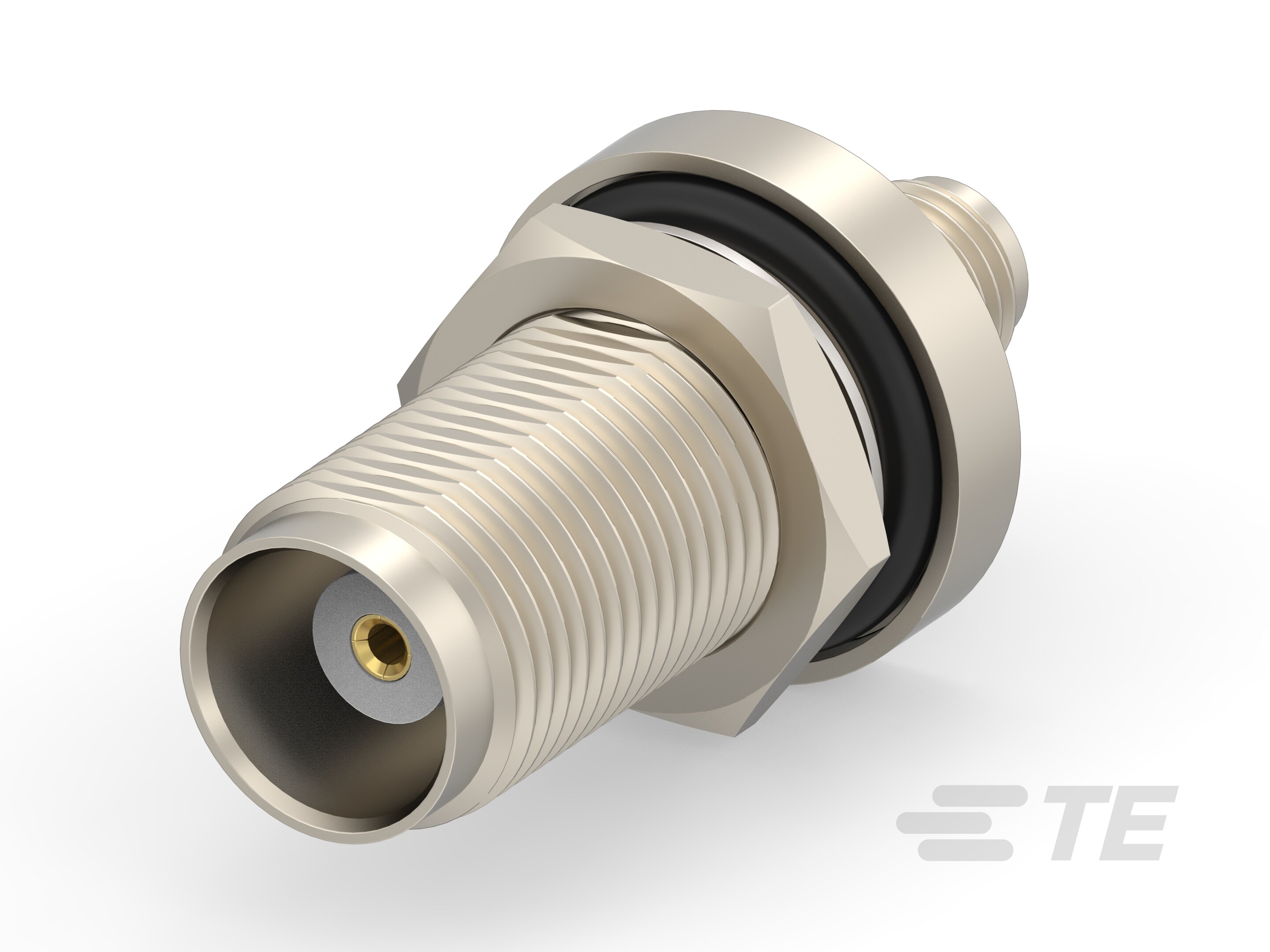

SMA JACK TO TNC JACK BULKHEAD 11 GHZ SUS
2485928-1
ActiveTE Connectivity AMP Connectors
SMA JACK TO TNC JACK BULKHEAD 11 GHZ SUS
Description
General part information
2485928-1
In-Series Adapter, Straight, SMA Side A, Jack Side A, TNC Side B, Jack Side B, 2 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 2485928-1 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Jack to Jack |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Style | Straight |
