FWJ-1000A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 1KA 1KVAC/800VDC
FWJ-1000A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 1KA 1KVAC/800VDC
Description
General part information
FWJ-1000A

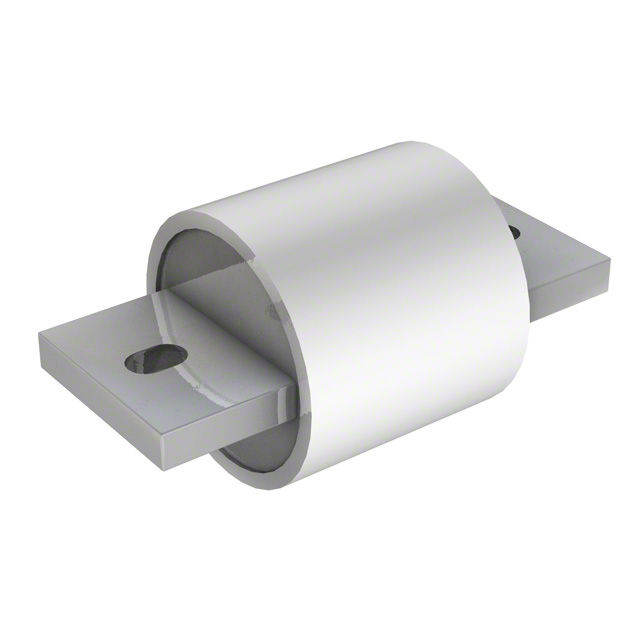

1kA 1 kVAC 800 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWJ-1000A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE |
| Breaking Capacity | 100 kA |
| Current Rating | 1000 A |
| Fuse Type | Cartridge |
| Melting I²t | 190000 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 3.5 in |
| Size / Dimension Length | 6.811 in |
| Voltage Rating - AC | 1 kVAC |
| Voltage Rating - DC | 800 V |
