20-101-1306
ObsoleteDigi International
IC MOD RABBIT 5000 50MHZ 128KB
20-101-1306
ObsoleteDigi International
IC MOD RABBIT 5000 50MHZ 128KB
Description
General part information
20-101-1306

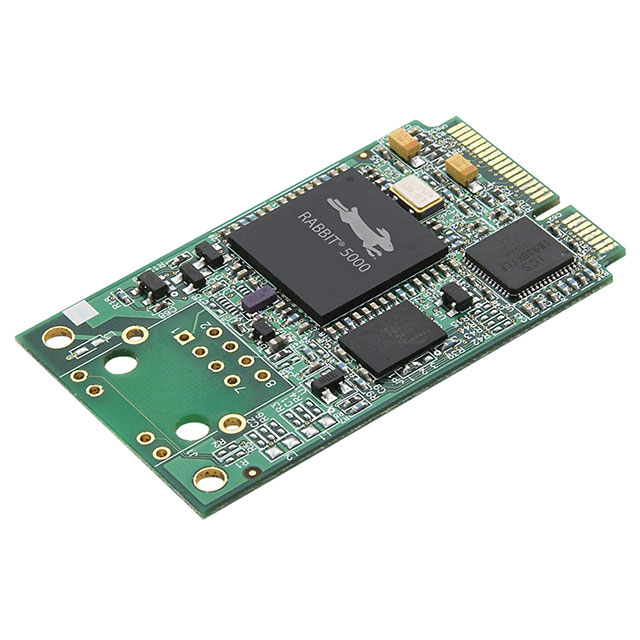

MiniCore® Embedded Module Rabbit 5000 50MHz 128KB (Internal), 512KB (External) 1MB (Internal), 2MB (External)
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-101-1306 |
|---|---|
| Connector Pin Count | 52 |
| Connector Type | Edge Connector, Edge Connector - 52 |
| Core Processor | Rabbit 5000 |
| Flash Size (External) | 2 MB |
| Flash Size (Internal) | 1 MB |
| Module/Board Type | MPU Core |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RAM Size (External) | 512 KB |
| RAM Size (Internal) | 128 KB |
| RAM Size Type | External, Internal |
| Size / Dimension Length | 1.2 in |
| Size / Dimension Width | 2 in |
| Speed | 50 MHz |
