1546211-5
ActiveTE Connectivity AMP Connectors

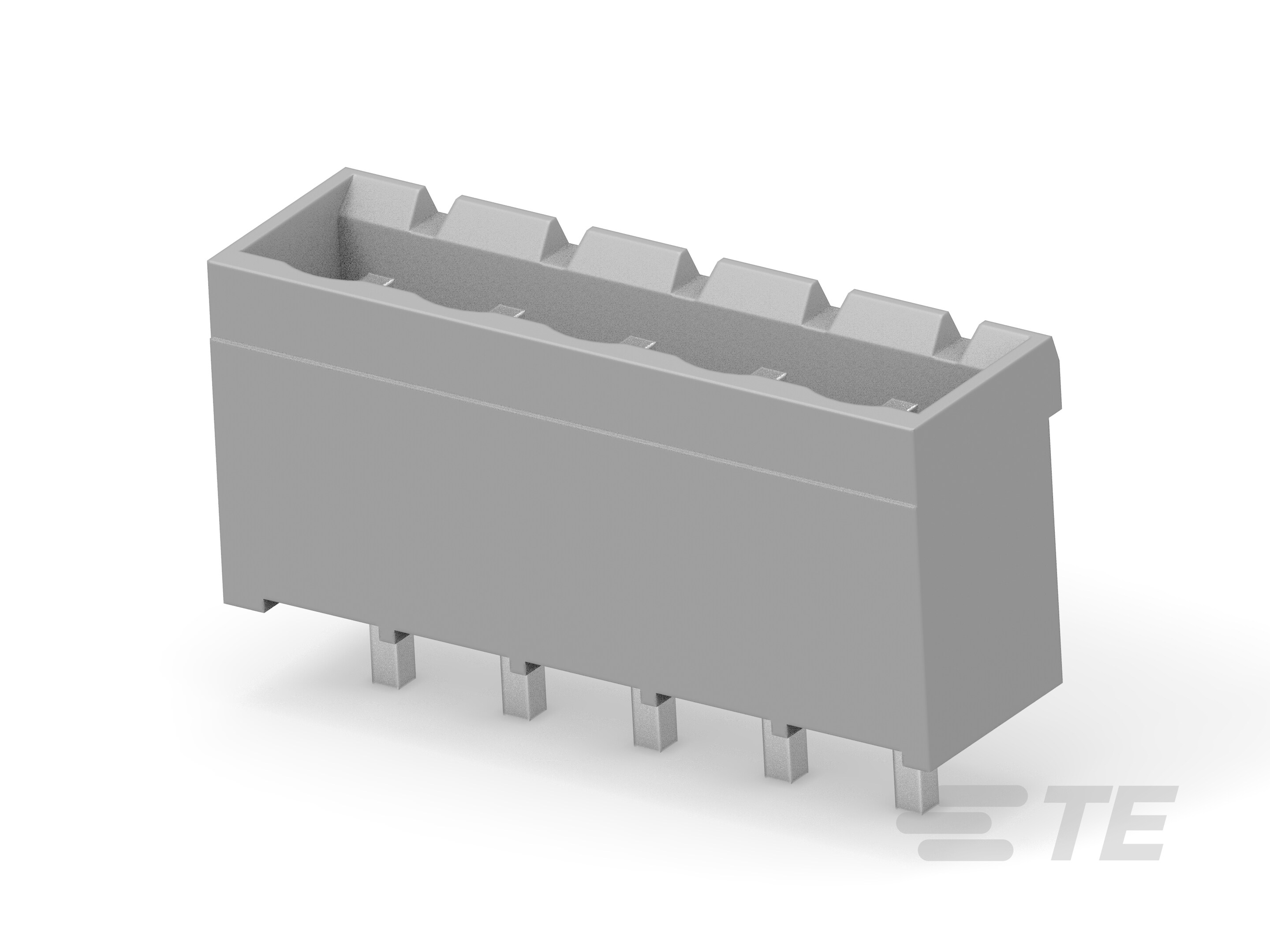

TERMI-BLOK HEADER,ASSY1805P. 5
1546211-5
ActiveTE Connectivity AMP Connectors
TERMI-BLOK HEADER,ASSY1805P. 5
Description
General part information
1546211-5
5 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 1546211-5 |
|---|---|
| Color | Gray |
| Contact Mating Finish | Tin |
| Current - UL | 15 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
