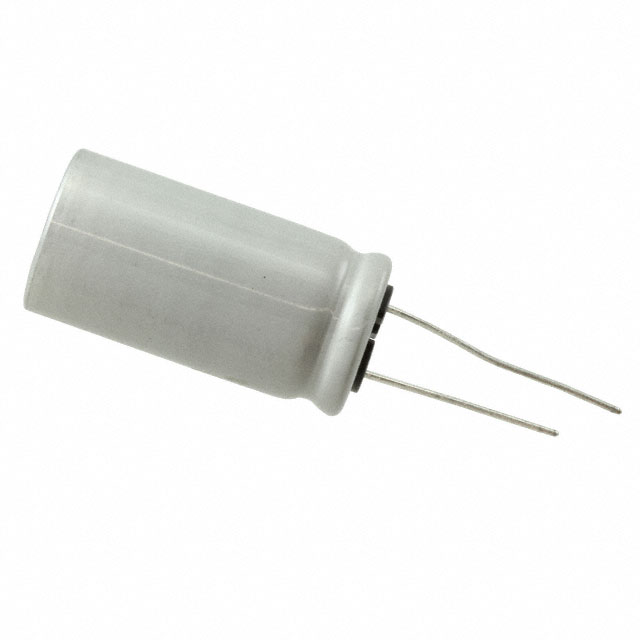

Specification	UBY1V622MHL

Applications	Automotive
Capacitance	6.2 mF
ESR (Equivalent Series Resistance)	19 mOhm
Height - Seated (Max)	1.457 in
Lead Spacing	0.295 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	3.75 A, 3.188 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	35 V

UBY Series

Part	Lead Spacing	Applications	Size / Dimension Diameter	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Height - Seated (Max)	Tolerance	Ripple Current	Package / Case	Voltage - Rated	Mounting Type	ESR (Equivalent Series Resistance)	Ratings	Polarization	Lifetime
Nichicon UBY1E202MHL	0.197 in	Automotive	0.492 in	135 °C	-40 °C	2000 µF	0.846 in	20 %	1.656 A 2.76 A	Can Radial	25 VAC	Through Hole	42 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY2A271MHL1TN	0.295 in	Automotive	0.63 in	135 °C	-40 °C	270 µF	0.846 in	20 %	1.07 A 2.14 A	Can Radial	100 VAC/DC	Through Hole	53 mOhm		Polar	3000 Hrs
Nichicon UBY1E472MHL1TN	0.295 in	Automotive	0.63 in	135 °C	-40 °C	4700 µF	1.043 in	20 %	3.621 A 4.26 A	Can Radial	25 VAC	Through Hole	26 mOhm		Polar	3000 Hrs
Nichicon UBY1H182MHL	0.295 in	Automotive	0.63 in	135 °C	-40 °C	1800 µF	1.299 in	20 %	2.376 A 3.96 A	Can Radial	50 V	Through Hole	29 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY1H242MHL	0.295 in	Automotive	0.709 in	135 °C	-40 °C	2400 µF	1.299 in	20 %	2.265 A 3.02 A	Can Radial	50 V	Through Hole	28 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY1K391MHL	0.197 in	Automotive	0.492 in	135 °C	-40 °C	390 µF	1.043 in	20 %	1.26 A 2.52 A	Can Radial	80 Vp-p	Through Hole	54 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY2A681MHL	0.295 in	Automotive	0.709 in	135 °C	-40 °C	680 µF	1.299 in	20 %	2.448 A 4.08 A	Can Radial	100 VAC/DC	Through Hole	28 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY2A361MHL6TN	0.295 in	Automotive	0.709 in	135 °C	-40 °C	360 µF	0.846 in	20 %	1.175 A 2.35 A	Can Radial	100 VAC/DC	Through Hole	48 mOhm		Polar	3000 Hrs
Nichicon UBY1K271MHL	0.197 in	Automotive	0.492 in	135 °C	-40 °C	270 µF	0.846 in	20 %	1.64 A 820 mA	Can Radial	80 Vp-p	Through Hole	74 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY1E202MHL1TO	0.197 in	Automotive	0.492 in	135 °C	-40 °C	2000 µF	0.846 in	20 %	1.656 A 2.76 A	Can Radial	25 VAC	Through Hole	42 mOhm		Polar	3000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UBY1V622MHL | Datasheet
