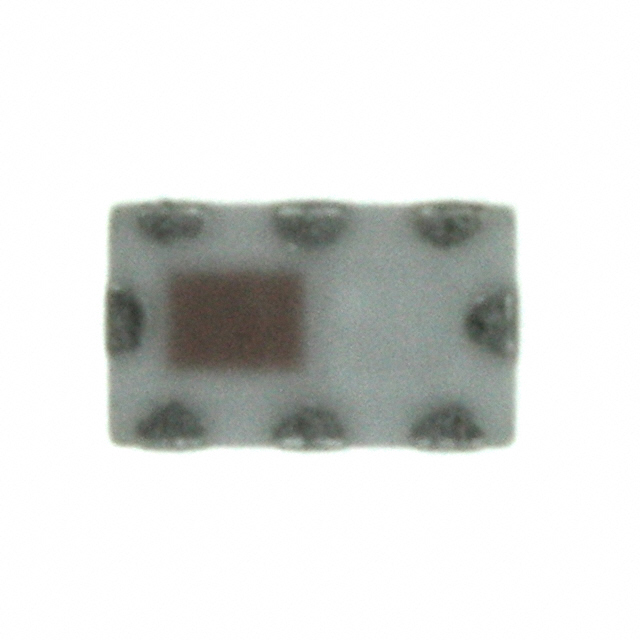

0915LP15A026001E
ObsoleteJohanson Technology Inc.
RF FILTER LOW PASS 915MHZ 0805
0915LP15A026001E
ObsoleteJohanson Technology Inc.
RF FILTER LOW PASS 915MHZ 0805
Description
General part information
0915LP15A026001E
915MHz Center Frequency Low Pass RF Filter (Radio Frequency) 26MHz Bandwidth 0.65dB 0805 (2012 Metric), 8 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 0915LP15A026001E |
|---|---|
| Bandwidth | 26 MHz |
| Filter Type | Low Pass |
| Frequency (Center) | 915 MHz |
| Height (Max) | 0.037 in |
| Insertion Loss | 0.65 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 8 PC Pad |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
