515D336M6R3JA6AE3
ObsoleteVishay Dale

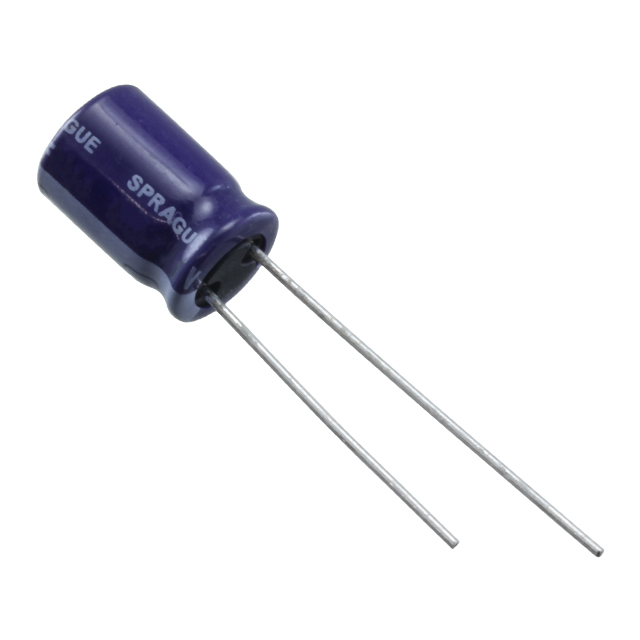

CAP ALUM 33UF 20% 6.3V RADIAL TH
515D336M6R3JA6AE3
ObsoleteVishay Dale
CAP ALUM 33UF 20% 6.3V RADIAL TH
Description
General part information
515D336M6R3JA6AE3
33 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 515D336M6R3JA6AE3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.079 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 42 mA, 84 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
