450D503KSD8
ActiveCTS Electrocomponents
POT 50K OHM 1/3W CARBON LINEAR
450D503KSD8
ActiveCTS Electrocomponents
POT 50K OHM 1/3W CARBON LINEAR
Description
General part information
450D503KSD8

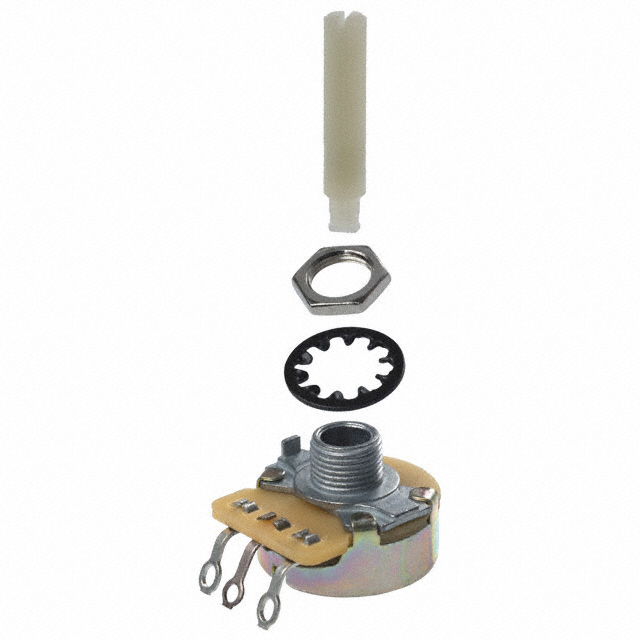

50k Ohm 1 Gang Linear Panel Mount Potentiometer 1 Turns Carbon 0.333W, 1/3W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 450D503KSD8 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 1 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 0.333 W |
| Power (Watts) Options | 1/3W |
| Resistance | 50 kOhm |
| Resistive Material | Carbon |
| Rotation | 300 ° |
| Size - Body Diameter | 0.938 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
