MMF404001
ActiveMicro-Measurements (Division of Vishay Precision Group)
EA-13-062TZA-350 - STRAIN GAGES
MMF404001
ActiveMicro-Measurements (Division of Vishay Precision Group)
EA-13-062TZA-350 - STRAIN GAGES
Description
General part information
MMF404001

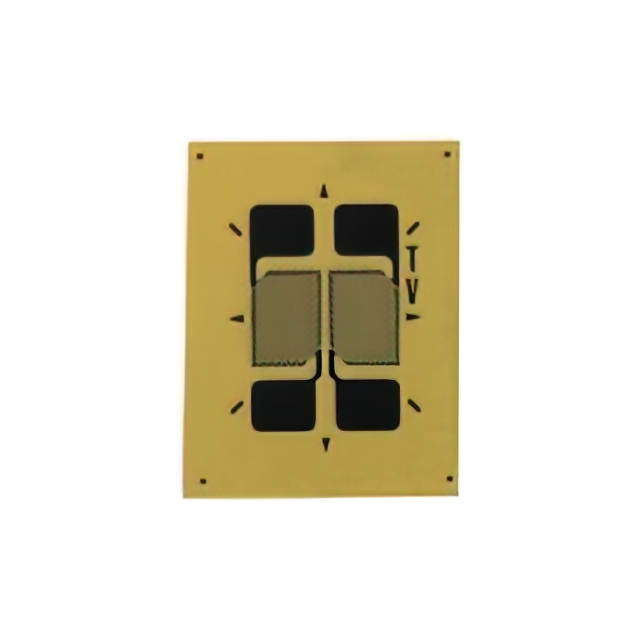

Tee Rosette Strain Gauge ±3% 0.062" (1.57mm) 0.075" (1.91mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404001 |
|---|---|
| Length - Active | 0.062 in |
| Length - Overall | 0.28 in |
| Length - Overall Pattern | 0.133 in |
| Length - Overall Pattern (mm) | 3.38 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Tee Rossette |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.2 % |
| Strain Range | 3 % |
| Width - Active | 0.075 in |
| Width - Overall | 0.26 in |
| Width - Overall Pattern | 0.168 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
