2842495-5
ActiveTE Connectivity AMP Connectors
FIXED TERMINAL BLOCKS SCL 1.0 HDR DRVT USP 060 SMT G3 TR
2842495-5
ActiveTE Connectivity AMP Connectors
FIXED TERMINAL BLOCKS SCL 1.0 HDR DRVT USP 060 SMT G3 TR
Description
General part information
2842495-5

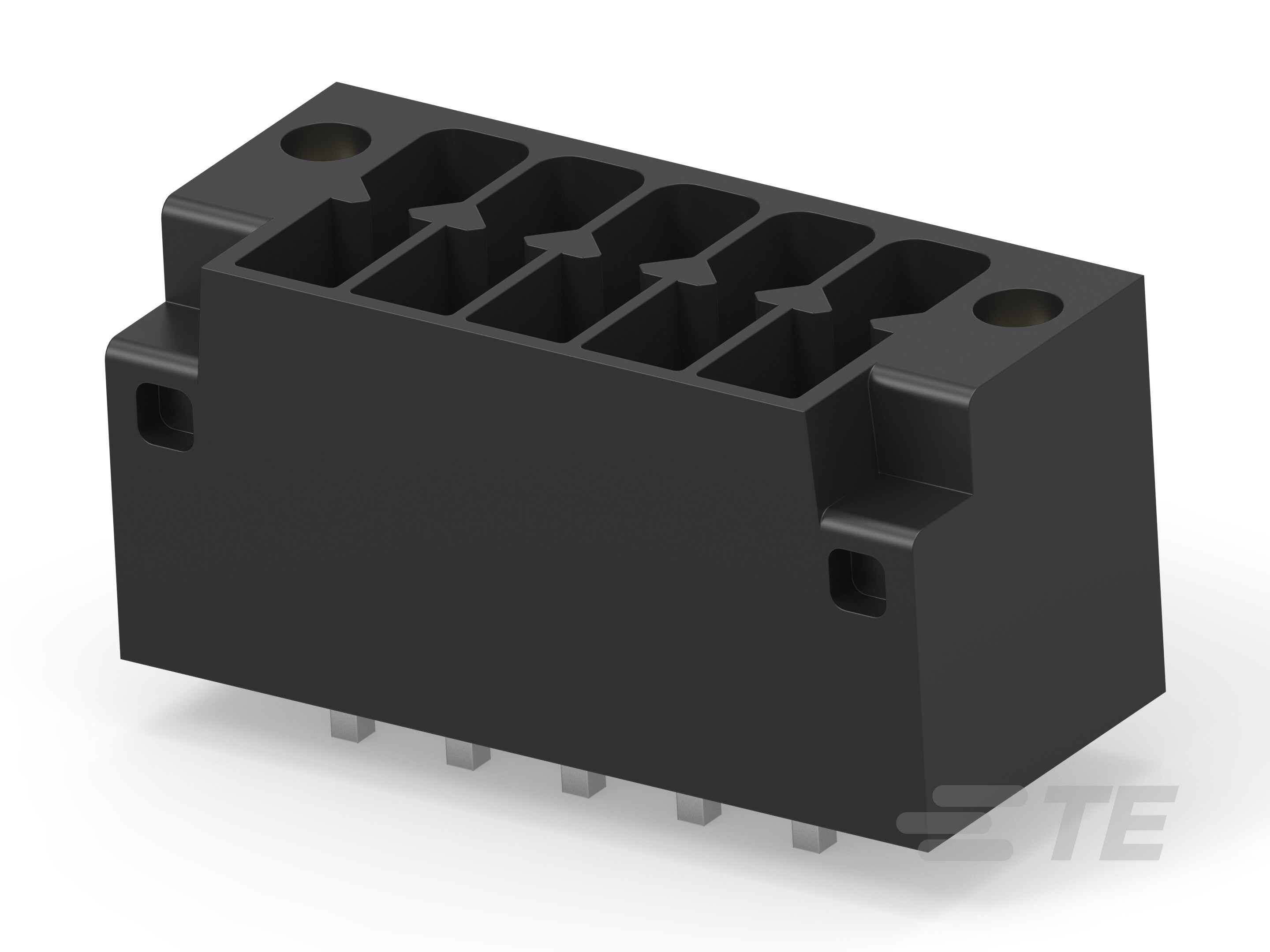

10 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.137 in] Centerline, 2 Row, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 2842495-5 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Current - UL | 8 A |
| Features | Flange |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 10 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 5 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
