6803335243F

Active

DIALIGHT

10MM HO/O PMI-24VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HO/O PMI-24VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	200	$ 3.72

General part information

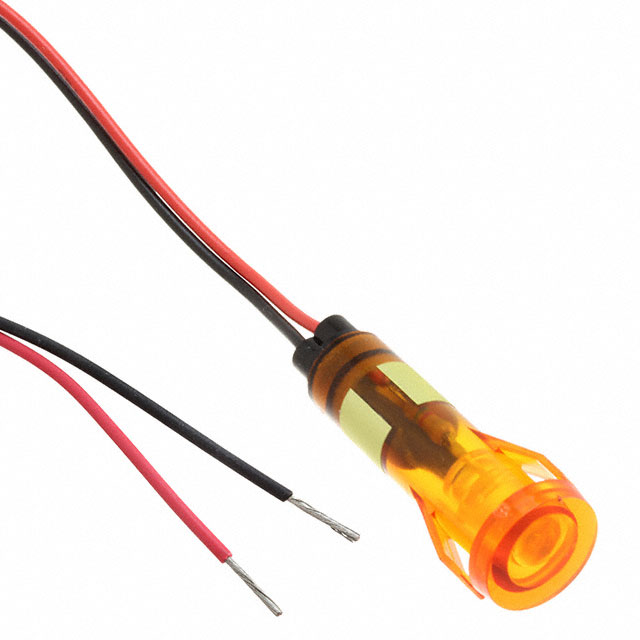

LED Panel Indicator Yellow 24V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	6803335243F	6803335 Series

Current	30 mA	30 mA
Lamp Color	Yellow	Orange, Yellow
Lens Size	-	12 mm
Millicandela Rating	1025 mcd	1025 - 2000 mcd
Panel Cutout Dimensions	-	10.3 mm
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions	-	10.41 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V
Wavelength - Peak	-	605 nm

LED PANEL INDCATOR ORANGE 6V

Part	Millicandela Rating	Wavelength - Peak	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size [diameter]	Voltage	Lamp Color	Type	Current	Viewing Angle	Ratings	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6803335123F	2000 mcd	605 nm	Round	10.3 mm	0.41 in	12 mm	6 V	Orange	LED	30 mA	30 °	DC
DIALIGHT 6803335233F	2000 mcd	605 nm					12 V	Orange	LED	30 mA	30 °	DC
DIALIGHT 6803335243F	1025 mcd		Round				24 V	Yellow	LED	30 mA		DC	0.37 in	9.4 mm
DIALIGHT 6803335143F	1455 mcd		Round				24 V	Yellow	LED	30 mA		DC			0.41 in	10.41 mm
DIALIGHT 6803335133F	2000 mcd	605 nm	Round	10.3 mm	0.41 in	12 mm	12 V	Orange	LED	30 mA	30 °	DC
