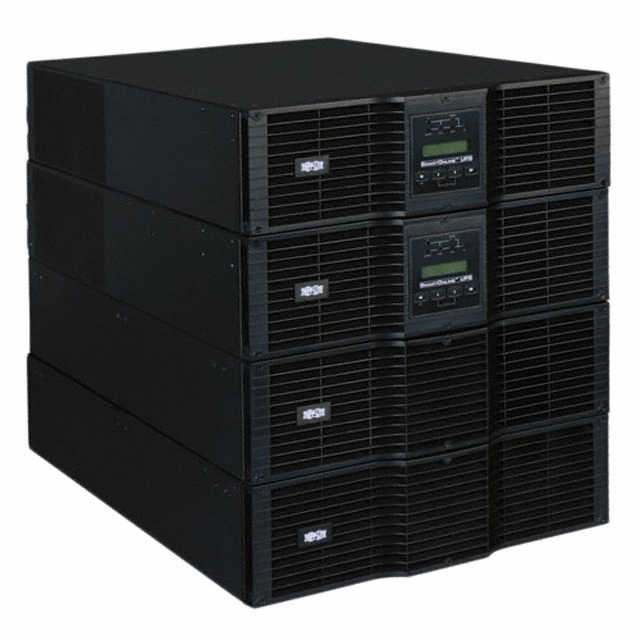

Specification	SU20KRT

AC Outlets (Count)	10 count
Applications	Network, Single Phase
Approval Agency	CSA, FCC, UL
Backup Time - Max Load	4.3 minutes
Form	Rackmount
Height	5.157 in
Input Connector	Hardwired
Media Lines Protected	RS-232
Output Connector	NEMA L6-30R, C19
Output Connector Pin Count	8
Output Connector Quantity (NEMA L6-30R)	2
Power - Rated (VA)	20 kVA
Power - Rated (W)	18000 W
Size / Dimension Length	25.827 in
Size / Dimension Width	17.48 in
Type	Online (Double Conversion)
Voltage - Input	200 VAC, 240 VAC, 208 VAC
Voltage - Output	208 V, 240 V, 200 V
