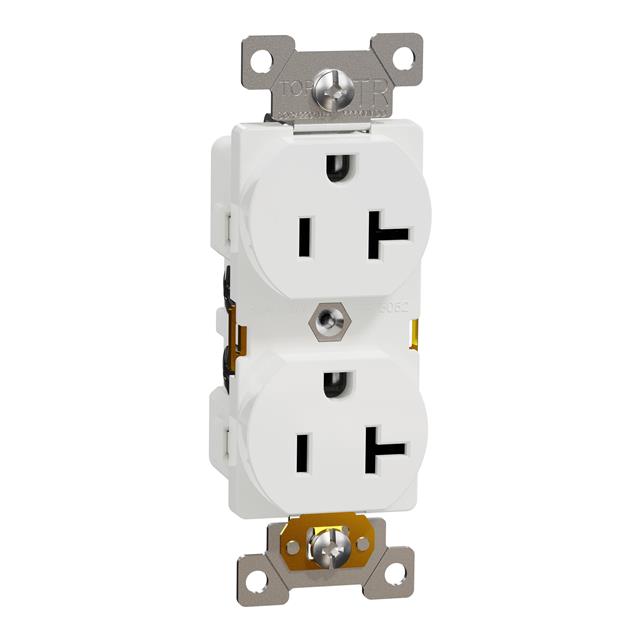

SQR42201WH
ActiveSCHNEIDER ELECTRIC
TR 20A DUPLEX OUTLET COMM WH
SQR42201WH
ActiveSCHNEIDER ELECTRIC
TR 20A DUPLEX OUTLET COMM WH
Description
General part information
SQR42201WH
Power Connector Receptacle, Female Socket NEMA 5-20R Outlet Box
Technical Specifications
Parameters and characteristics for this part
| Specification | SQR42201WH |
|---|---|
| Connector Style | NEMA 5-20R |
| Connector Type | Recepture, Female Socket |
| Current Rating | 20 A |
| Features | Tamper Resistant |
| Mounting Type | Outlet Box |
| Number of Connections | 2 |
| Number of Positions (per connection) | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
