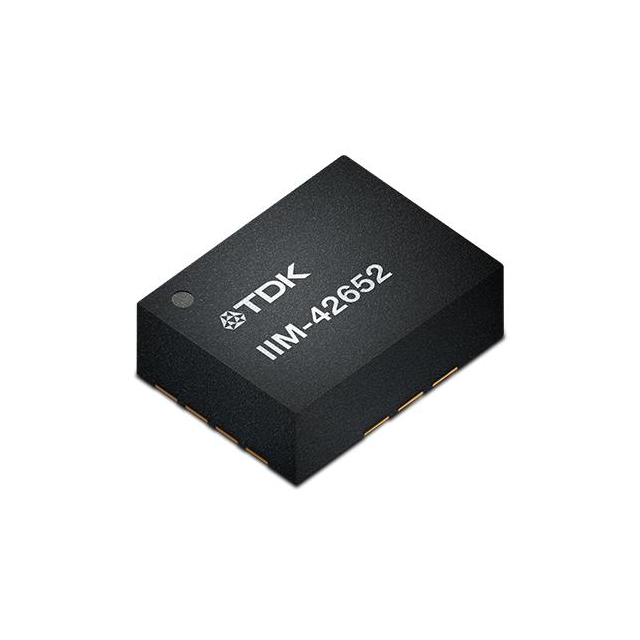

IIM-42652
ActiveTDK Corporation
COMPACT, LOW POWER 6-AXIS INDUST
IIM-42652
ActiveTDK Corporation
COMPACT, LOW POWER 6-AXIS INDUST
Description
General part information
IIM-42652
Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 6.25Hz ~ 16kHz 14-LGA (2.5x3)
Technical Specifications
Parameters and characteristics for this part
| Specification | IIM-42652 |
|---|---|
| Acceleration Range | 8g, 16g, 4g, ±2g |
| Axis | Y, Z, X |
| Bandwidth (Max) | 16 kHz |
| Bandwidth (Min) | 6.25 Hz |
| Features | Selective Scale, Temperature Sensor, Sleep Mode |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | SPI, I2C, I3C |
| Package / Case | 14-VFLGA |
| Package Length | 2.5 mm |
| Package Name | 14-LGA |
| Package Width | 3 mm |
| Sensitivity (LSB/g) | 16384 LSB/g, 2048 LSB/g |
| Sensitivity Tolerance (g) | 2 g, 16 g |
| Type | Digital |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.71 V |
