L000657-01
ActiveTE Connectivity AMP Connectors
SPLATCH 5G/LTE GLOBAL WIDEBAND CHIP ANT
L000657-01
ActiveTE Connectivity AMP Connectors
SPLATCH 5G/LTE GLOBAL WIDEBAND CHIP ANT
Description
General part information
L000657-01

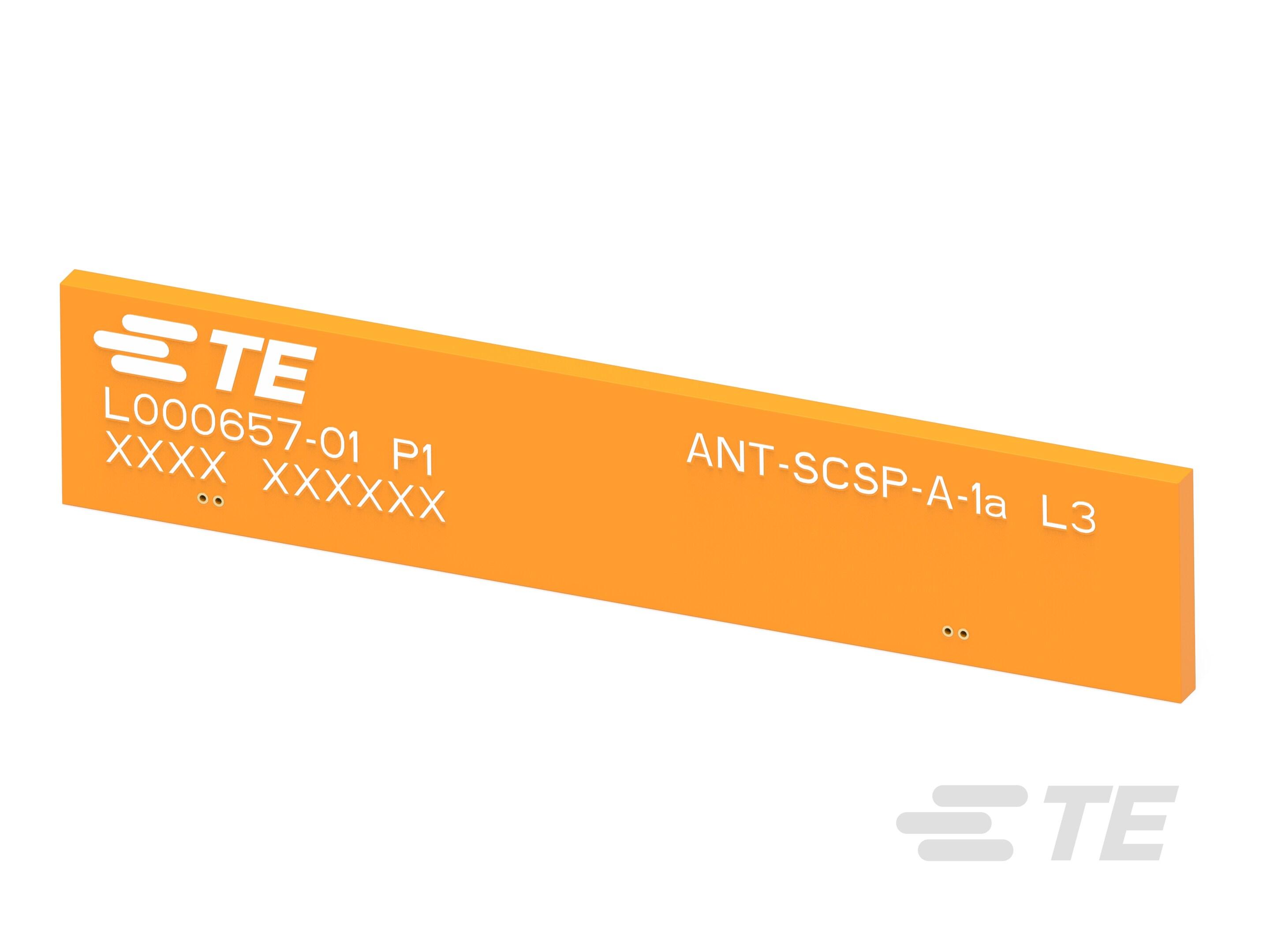

PCB Antenna, Wide Band, 5G, Internal/Embedded Mount, Printed Circuit Board Mount, SMD, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000657-01 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | UMTS, 5G, LTE, WCDMA |
| Frequency (Center/Band) | 2.808 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 5 GHz |
| Frequency Range (Min) | 617 MHz |
| Gain | 6 dBi |
| Height (Max) | 0.062 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 4.5 |
