2065038-1
ActiveTE Connectivity AMP Connectors
3PR 16COL R/A RCPT ASSY 85 OHM
2065038-1
ActiveTE Connectivity AMP Connectors
3PR 16COL R/A RCPT ASSY 85 OHM
Description
General part information
2065038-1

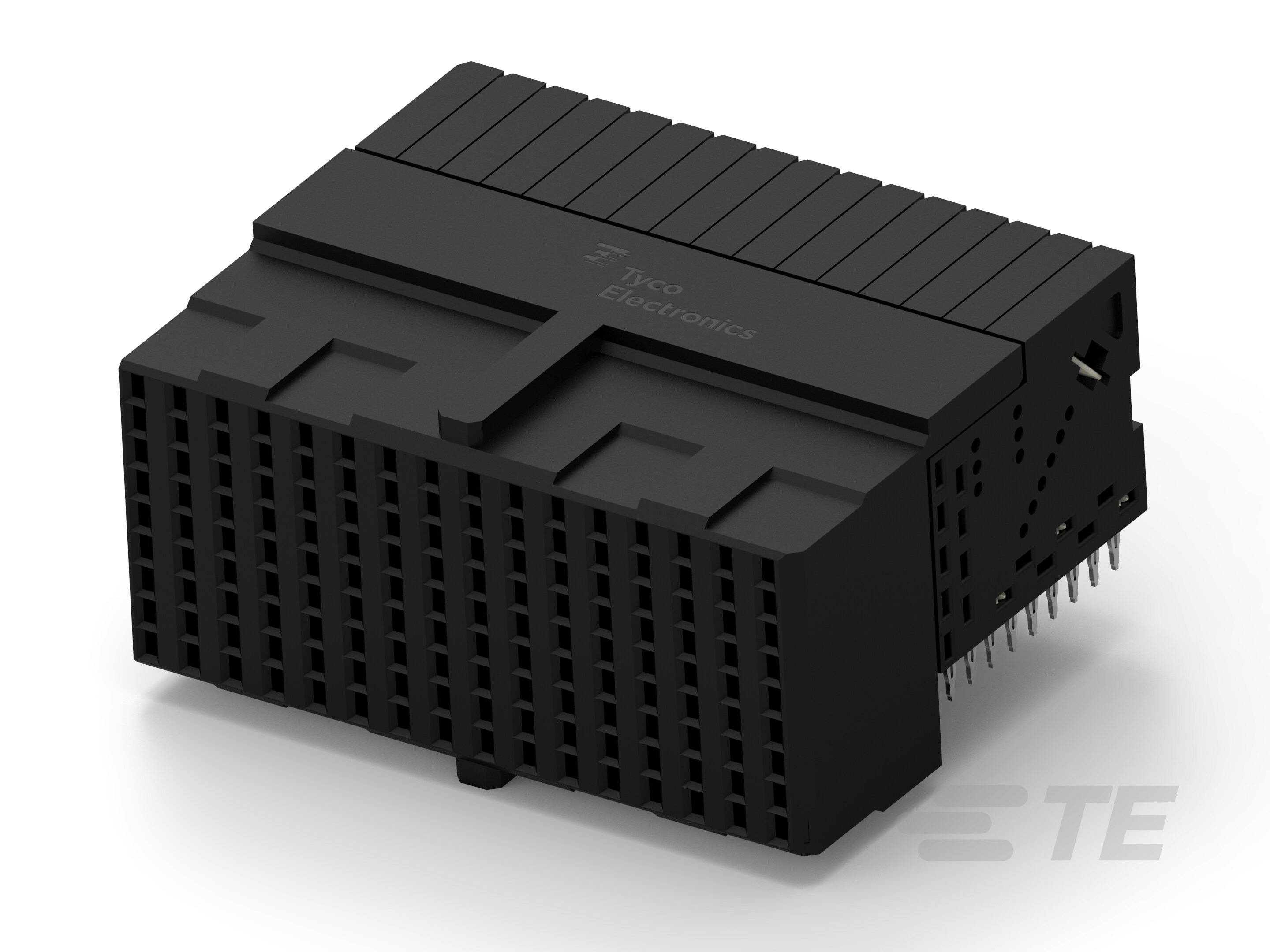

144 Position High Speed Backplane Connector, 3 Row, 16 Column, PCB Mount Receptacle, Right Angle, Fully Shrouded, 1.9 mm [.075 in] Centerline
Technical Specifications
Parameters and characteristics for this part
| Specification | 2065038-1 |
|---|---|
| Color | Black |
| Connector Style | High Speed |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | Backplane |
| Contact Finish | Tin |
| Contact Finish Thickness | 20 µin |
| Mounting Type | Through Hole, Right Angle |
| Number of Columns | 16 |
| Number of Positions | 144 |
| Number of Positions Loaded | All |
| Number of Rows | 9 |
| Pitch | 0.075 in |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
