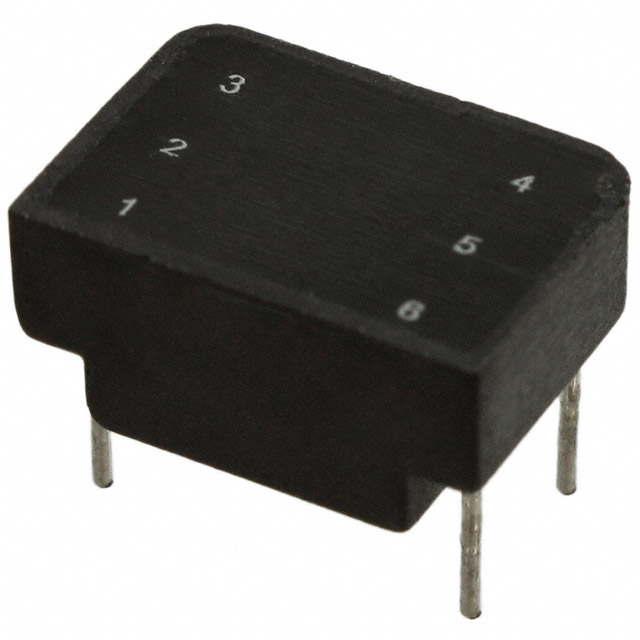

T6075NL
ActivePulse Electronics
PULSE XFMR 1:1 225UH
T6075NL
ActivePulse Electronics
PULSE XFMR 1:1 225UH
Description
General part information
T6075NL
225µH Pulse Transformer 1:1 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | T6075NL |
|---|---|
| Height - Seated (Max) | 0.25 in |
| Inductance | 225 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.498 in |
| Size / Dimension Width | 0.35 in |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
