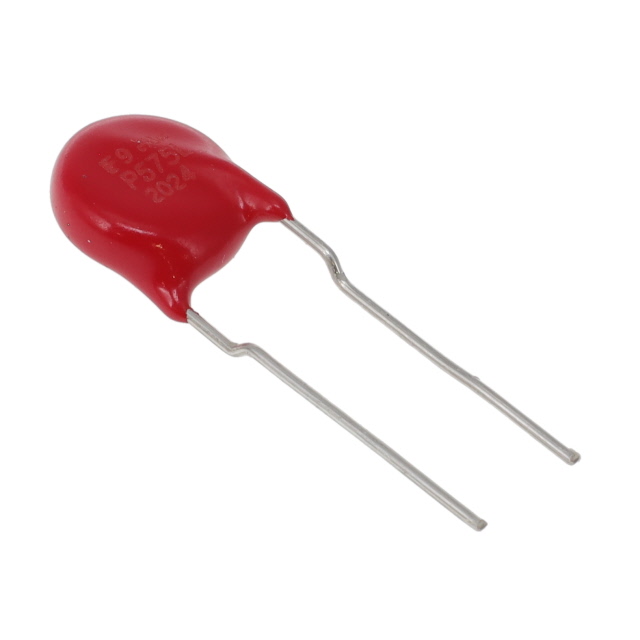

V575LU10P
ActiveLITTELFUSE
RADIAL VARISTOR 10MM ROHS/LEAD FREE/ TR
V575LU10P
ActiveLITTELFUSE
RADIAL VARISTOR 10MM ROHS/LEAD FREE/ TR
Description
General part information
V575LU10P
910 V 2.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Technical Specifications
Parameters and characteristics for this part
| Specification | V575LU10P |
|---|---|
| Capacitance | 90 pF |
| Current - Surge | 2500 A |
| Energy | 65 J |
| Maximum AC Volts | 575 V |
| Maximum DC Voltage | 730 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package Diameter | 10 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 1.001 kV |
| Varistor Voltage (Min) | 819 V |
| Varistor Voltage (Typ) | 910 V |
