826658-5
ActiveTE Connectivity AMP Connectors

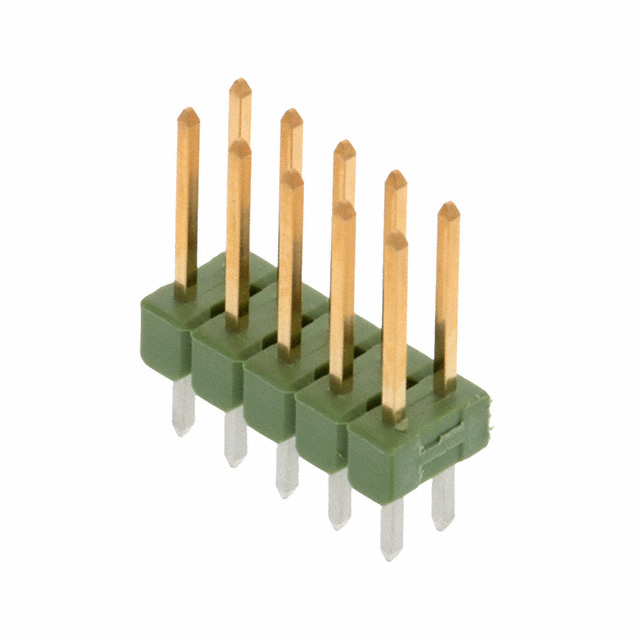

CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
826658-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 826658-5 | 826658 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Mating | 8 mm | 8 mm |
| Contact Length - Mating | 0.315 in | 0.315 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 6 - 100 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.551 " | 0.551 " |
| Overall Contact Length | 14 mm | 14 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826658 Series
CONN HEADER VERT 10POS 2.54MM
| Part | Material Flammability Rating | Contact Finish - Mating | Termination | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Material | Shrouding | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Type | Overall Contact Length | Overall Contact Length | Insulation Color | Style | Contact Length - Post | Contact Length - Post [x] | Contact Length - Mating | Contact Length - Mating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Number of Positions | Fastening Type | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 826658-5 | UL94 V-0 | Gold | Solder | 0.1 in | 2.54 mm | Through Hole | Polybutylene Terephthalate (PBT) | Unshrouded | Brass | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | All | Male Pin | 0.551 " | 14 mm | Green | Board to Board, Cable | 3.2 mm | 0.126 in | 8 mm | 0.315 in | Square | 0.099 µm | 3.9 µin | Tin | Breakaway, Header | 3 µm | 118.1 µin | 5 A | 10 | Push-Pull | 2 | |
TE Connectivity AMP Connectors 826658-3 | UL94 V-0 | Gold | Solder | 0.1 in | 2.54 mm | Through Hole | Polybutylene Terephthalate (PBT) | Unshrouded | Brass | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | All | Male Pin | 0.551 " | 14 mm | Green | Board to Board, Cable | 3.2 mm | 0.126 in | 8 mm | 0.315 in | Square | 0.099 µm | 3.9 µin | Tin | Breakaway, Header | 3 µm | 118.1 µin | 5 A | 6 | Push-Pull | 2 | |
TE Connectivity AMP Connectors 5-826658-0 | UL94 V-0 | Gold | Solder | 0.1 in | 2.54 mm | Through Hole | Polybutylene Terephthalate (PBT) | Unshrouded | Brass | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | All | Male Pin | 0.551 " | 14 mm | Green | Board to Board, Cable | 3.2 mm | 0.126 in | 8 mm | 0.315 in | Square | 0.099 µm | 3.9 µin | Tin | Breakaway, Header | 3 µm | 118.1 µin | 5 A | 100 | Push-Pull | 2 | |
TE Connectivity AMP Connectors 826658-8 | UL94 V-0 | Gold | Solder | 0.1 in | 2.54 mm | Through Hole | Polybutylene Terephthalate (PBT) | Unshrouded | Brass | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | All | Male Pin | 0.551 " | 14 mm | Green | Board to Board, Cable | 3.2 mm | 0.126 in | 8 mm | 0.315 in | Square | 0.099 µm | 3.9 µin | Tin | Breakaway, Header | 3 µm | 118.1 µin | 5 A | Push-Pull | 2 | 16 | |
TE Connectivity AMP Connectors 826658-6 | UL94 V-0 | Gold | Solder | 0.1 in | 2.54 mm | Through Hole | Polybutylene Terephthalate (PBT) | Unshrouded | Brass | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | All | Male Pin | 0.551 " | 14 mm | Green | Board to Board, Cable | 3.2 mm | 0.126 in | 8 mm | 0.315 in | Square | 0.099 µm | 3.9 µin | Tin | Breakaway, Header | 3 µm | 118.1 µin | 5 A | 12 | Push-Pull | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.95 | |||
| 400 | $ 0.83 | |||
| 800 | $ 0.82 | |||
Description
General part information
826658 Series
Connector Header Through Hole 10 position 0.100" (2.54mm)
