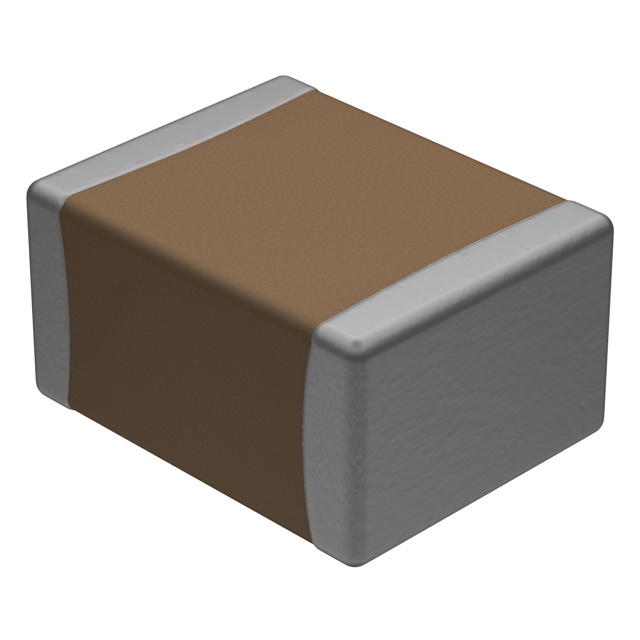

VJ1210Y562KLEAJ32

Active

Vishay Vitramon

CAP CER 5600 PF 500V X7R 1210 PB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VJ1210Y562KLEAJ32

Active

Vishay Vitramon

CAP CER 5600 PF 500V X7R 1210 PB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VJ1210Y562KLEAJ32	VJ1210 Series

Applications	Automotive	SMPS Filtering, Boardflex Sensitive, General Purpose, Automotive
Capacitance	5600 pF	0.001 - 100000 pF
Features	High Temperature	Soft Termination, High Voltage, Open Mode, High Temperature, Epoxy Mountable
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC, Epoxy
Operating Temperature [Max]	150 °C	85 - 150 °C
Operating Temperature [Min]	-55 °C	-55 - -25 °C
Package / Case	1210	1210
Package / Case	3225 Metric	3225 Metric
Ratings	AEC-Q200	AEC-Q200
Size / Dimension [x]	3.2 mm	3.2 - 3.35 mm
Size / Dimension [x]	0.126 in	0.126 - 0.132 "
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Temperature Coefficient	X7R	X7R, NP0, C0G, Y5V (F)
Thickness (Max)	-	1.05 - 1.7 mm
Thickness (Max) [Max]	1.94 mm	1.35 - 1.94 mm
Thickness (Max) [Max]	0.076 "	0.041 - 0.076 in
Tolerance	10 %	1 - 20 %
Tolerance	-	80 %
Tolerance	-	-20 %
Voltage - Rated	500 V	25 - 2000 V
Voltage - Rated	-	1 - 2 kV
Voltage - Rated	-	16 V

VJ1210 Series

CAP CER 1800PF 2KV X7R 1210

...

Part	Package / Case	Package / Case	Voltage - Rated	Voltage - Rated	Tolerance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Capacitance	Applications	Thickness (Max) [Max]	Thickness (Max)	Thickness (Max) [Max]	Ratings	Voltage - Rated [custom]
Vishay Vitramon VJ1210Y182JBFAT4X	1210	3225 Metric	2 kV	2000 V	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	3.35 mm	0.098 in	0.132 "	2.5 mm	High Voltage, Open Mode, Soft Termination	1800 pF	Boardflex Sensitive, SMPS Filtering	0.067 in	1.7 mm
Vishay Vitramon VJ1210Y563KXCAT	1210	3225 Metric		200 V	10 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm		0.056 µF	General Purpose	0.067 in	1.7 mm
Vishay Vitramon VJ1210Y124JBBAT4X	1210	3225 Metric		100 V	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	3.35 mm	0.098 in	0.132 "	2.5 mm	Open Mode, Soft Termination	0.12 µF	Boardflex Sensitive, SMPS Filtering	0.067 in	1.7 mm
Vishay Vitramon VJ1210Y273JLCAJ32	1210	3225 Metric		200 V	5 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm	High Temperature	0.027 µF	Automotive	0.076 "		1.94 mm	AEC-Q200
Vishay Vitramon VJ1210Y393MLCAJ32	1210	3225 Metric		200 V	20 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm	High Temperature	0.039 µF	Automotive	0.076 "		1.94 mm	AEC-Q200
Vishay Vitramon VJ1210Y105MXXAR	1210	3225 Metric		25 VDC	20 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm		1 µF	General Purpose	0.067 in	1.7 mm
Vishay Vitramon VJ1210Y124MLXAJ32	1210	3225 Metric		25 VDC	20 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm	High Temperature	0.12 µF	Automotive	0.076 "		1.94 mm	AEC-Q200
Vishay Vitramon VJ1210Y682MLCAJ32	1210	3225 Metric		200 V	20 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm	High Temperature	6800 pF	Automotive	0.076 "		1.94 mm	AEC-Q200
Vishay Vitramon VJ1210Y124MLJAJ32	1210	3225 Metric			20 %	X7R	-55 °C	150 °C	MLCC, Surface Mount	3.2 mm	0.098 in	0.126 in	2.5 mm	High Temperature	0.12 µF	Automotive	0.076 "		1.94 mm	AEC-Q200	16 V
Vishay Vitramon VJ1210Y563JBCAT4X	1210	3225 Metric		200 V	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	3.35 mm	0.098 in	0.132 "	2.5 mm	Open Mode, Soft Termination	0.056 µF	Boardflex Sensitive, SMPS Filtering	0.067 in	1.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 1.01

Description

General part information

VJ1210 Series

5600 pF ±10% 500V Ceramic Capacitor X7R 1210 (3225 Metric)

Documents

Technical documentation and resources
