787362-5

Active

TE Connectivity AMP Connectors

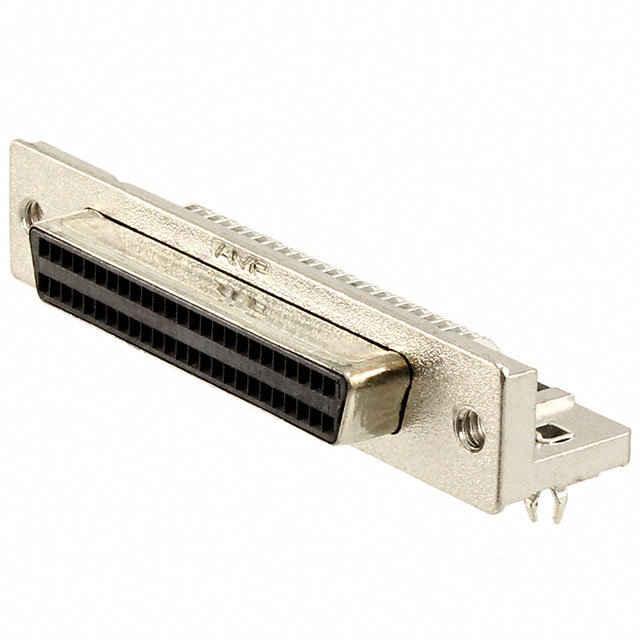

CONN D-TYPE RCPT 50POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50POS R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787362-5	787362 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	50	50 - 100
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 68POS R/A SLDR

Part	Features	Backset Spacing	Backset Spacing	Voltage Rating	Shell Material, Finish	Flange Feature	Color	Material Flammability Rating	Termination	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Dielectric Material	Number of Positions	Contact Material	Mounting Type	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Type	Connector Style
TE Connectivity AMP Connectors 787362-7	Board Lock, Shielded	3.71 mm	0.146 in	30 VDC	Nickel Plated, Steel	Housing/Shell (4-40)	Black	UL94 V-0	Solder	0.05	0.1	Thermoplastic	68	Phosphor Bronze	Board Edge, Right Angle, Through Hole	2	Receptacle, Female Sockets	105 ░C	-55 °C	Gold	Signal	D-Type
TE Connectivity AMP Connectors 787362-9	Board Lock, Shielded	3.71 mm	0.146 in	30 VDC	Nickel Plated, Steel	Housing/Shell (4-40)	Black	UL94 V-0	Solder	0.05	0.1	Thermoplastic	100	Phosphor Bronze	Board Edge, Right Angle, Through Hole	2	Receptacle, Female Sockets	105 ░C	-55 °C	Gold	Signal	D-Type
TE Connectivity AMP Connectors 787362-5	Board Lock, Shielded	3.71 mm	0.146 in	30 VDC	Nickel Plated, Steel	Housing/Shell (4-40)	Black	UL94 V-0	Solder	0.05	0.1	Thermoplastic	50	Phosphor Bronze	Board Edge, Right Angle, Through Hole	2	Receptacle, Female Sockets	105 ░C	-55 °C	Gold	Signal	D-Type

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	560	$ 10.20

General part information

50 Position D-Type Receptacle, Female Sockets Connector
