796449-1

Active

TE Connectivity AMP Connectors

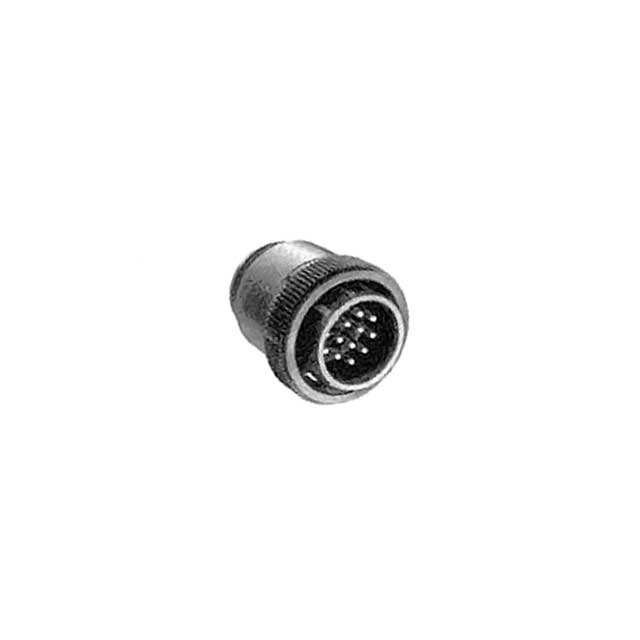

CONN PLUG HSG MALE 14POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG MALE 14POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796449-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Black
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	B
Shell Size - Insert	17-14
Shielding	Unshielded
Type	For Male Pins

CONN PLUG HSG MALE 14POS INLINE

Part	Material Flammability Rating	Contact Type	Housing Color	Connector Type	Note	Orientation	Mounting Type	Shielding	Type	Shell Size - Insert	Number of Positions	Features	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Contact Size	Contact Shape
TE Connectivity AMP Connectors 796449-1	UL94 V-0	Crimp	Black	Plug Housing	Contacts Not Included	B	Free Hanging (In-Line)	Unshielded	For Male Pins	17-14	14	Coupling Nut	105 ░C	-55 °C	Thermoplastic	16	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
