1891C SL001

Active

ALPHA WIRE

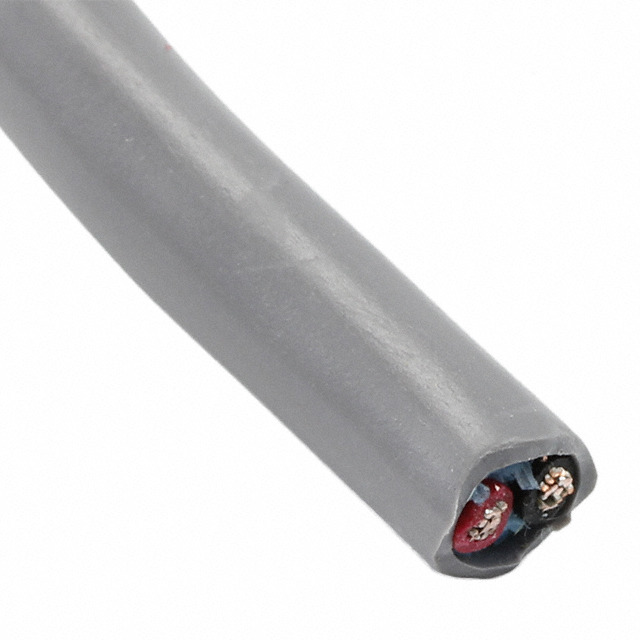

CABLE 2COND 14AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 14AWG SLATE 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1891C SL001	1891C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	41	41
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.268 in	0.268 in
Jacket (Insulation) Diameter [diameter]	6.81 mm	6.81 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	13.5 AWG	13.5 AWG

MULTI-CONDUCTOR CABLE POLYVINYL CHLORIDE 2CONDUCTORS 14AWG 7.13MM 300VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL

Part	Wire Gauge	Jacket (Insulation) Material	Usage	Conductor Insulation	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 1891C SL005	13.5 AWG	Poly-Vinyl Chloride (PVC)	Communication, Control	Poly-Vinyl Chloride (PVC)	300 V	Slate	0.268 in	6.81 mm	30.5 m	100 ft	41	30 AWG	2	Multi-Conductor	-20 C	80 C	Copper, Tinned	0.02 in	0.508 mm
ALPHA WIRE 1891C SL001	13.5 AWG	Poly-Vinyl Chloride (PVC)	Communication, Control	Poly-Vinyl Chloride (PVC)	300 V	Slate	0.268 in	6.81 mm			41	30 AWG	2	Multi-Conductor	-20 C	80 C	Copper, Tinned	0.02 in	0.508 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1423.92
