1617863
ActivePhoenix Contact
CONN RCP HSG MAL 17P INLN PNL MT
1617863
ActivePhoenix Contact
CONN RCP HSG MAL 17P INLN PNL MT
Description
General part information
1617863

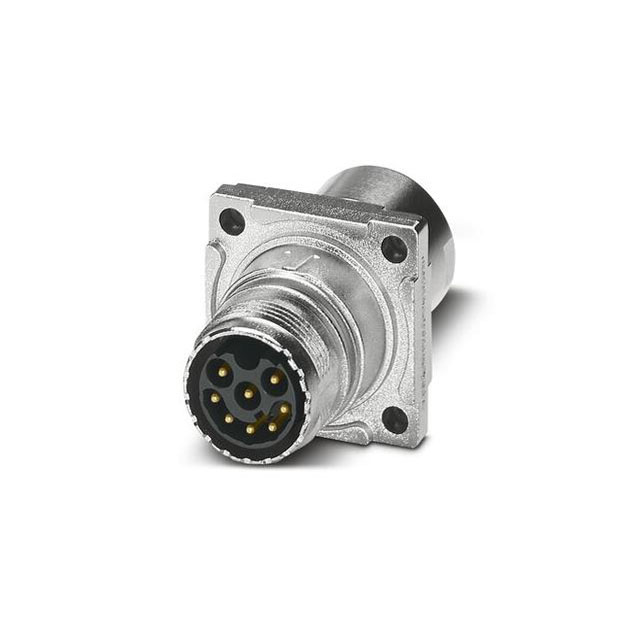

17 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 1617863 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 0.6 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Flange |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 17 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Shell Material | Metal |
| Shell Size - Insert | M17-17 |
| Shielding | Shielded |
| Type | For Male Pins |
