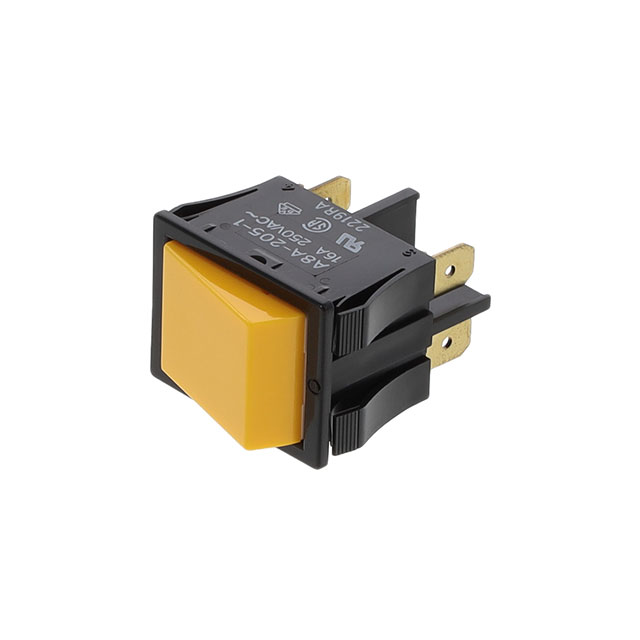

A8A-205-1
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
A8A-205-1
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A8A-205-1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat |
| Approval Agency | CSA, EN, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Yellow |
| Current Rating (Amps) | 16 A |
| Electrical Life | 20000 Steps |
| Ingress Protection | IP00 |
| Mechanical Life | 40000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.24 | |
| 10 | $ 10.97 | |||
| 25 | $ 10.61 | |||
Description
General part information
A8A-205 Series
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
