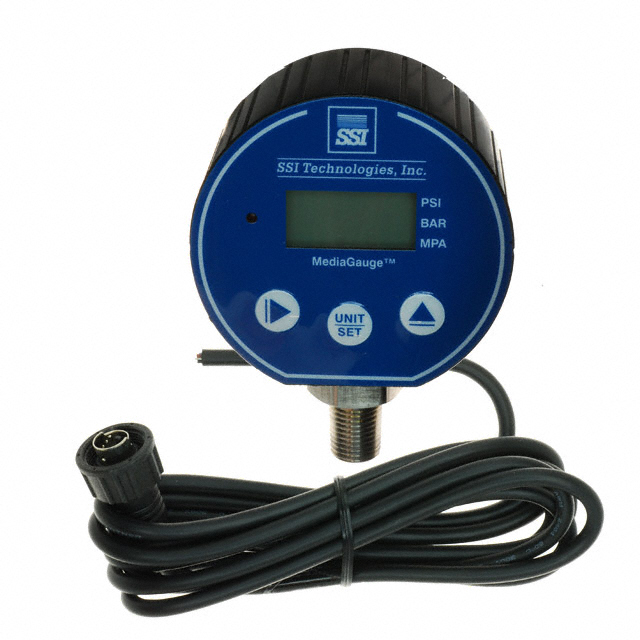

MG-500-A-MD-R
ObsoleteMcGill Microwave Systems
SENSOR DIGITAL GAUGE 500PSI LCD
MG-500-A-MD-R
ObsoleteMcGill Microwave Systems
SENSOR DIGITAL GAUGE 500PSI LCD
Description
General part information
MG-500-A-MD-R
SENSOR DIGITAL GAUGE 500PSI LCD
Technical Specifications
Parameters and characteristics for this part
| Specification | MG-500-A-MD-R |
|---|---|
| Accuracy | 0.25 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 1500 PSI |
| Operating Pressure | 500 PSI |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output | LCD Display |
| Output Current Range 1 (Max) | 20 mA |
| Output Current Range 1 (Min) | 4 mA |
| Output Type | Wheatstone Bridge |
| Package / Case | Module Box with Display |
| Package Name | MediaGauge |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Voltage - Supply | 12 VDC |
