Description
General part information

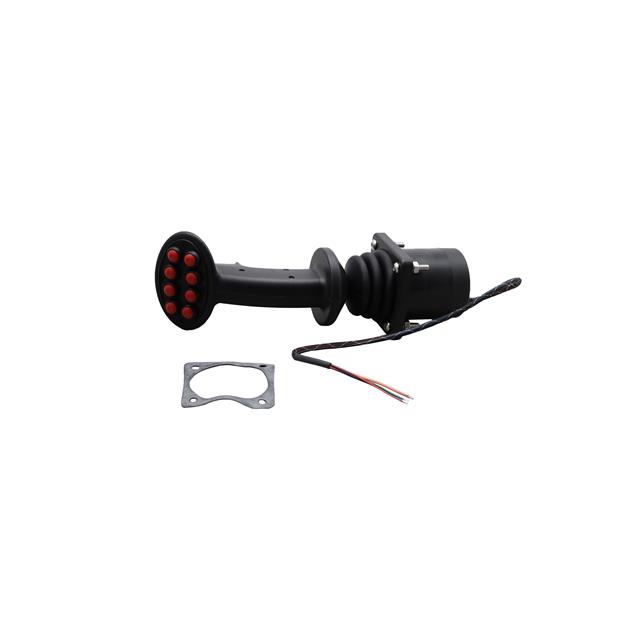

HJRMBSANNYEEA
Joystick, 2 - Axis Digital (Hall Effect Over CANbus Interface) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | HJRMBSANNYEEA |
|---|---|
| Actuator Type | Joystick |
| Functions, Extra | Index Trigger |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP63 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 1427 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Digital (Hall Effect Over CANbus Interface) |
| Panel Cutout Diameter | 71.4 mm |
| Panel Cutout Shape | Circular |
| Pushbuttons Count (Extra) | 8 |
| Switch Function | 4-Way Directional, Center Select |
| Termination Style | Connector |
| Type | Joystick, 2 - Axis |
| Voltage - Supply | 5 VDC |
