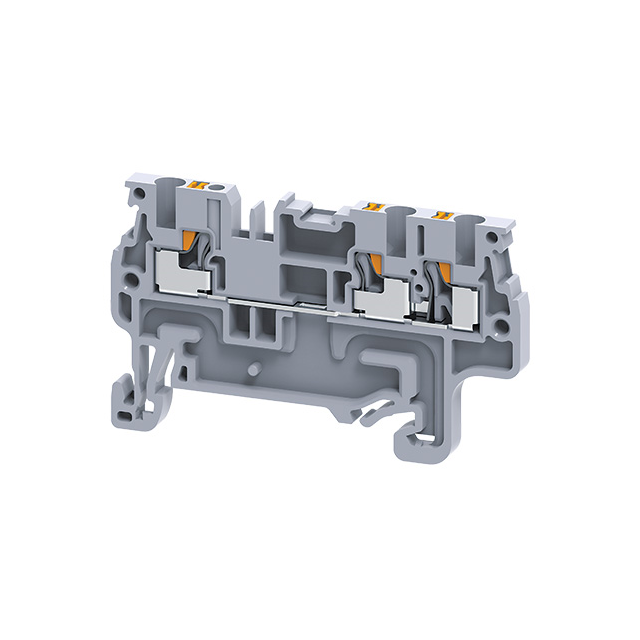

CP1.5/3/DB
ActiveAltech Corporation
DIN TERM BLK, PUSH-IN, 3 CONN
CP1.5/3/DB
ActiveAltech Corporation
DIN TERM BLK, PUSH-IN, 3 CONN
Description
General part information
CP1.5/3/DB
Terminal Block Connector 3 Position Feed Through 14-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | CP1.5/3/DB |
|---|---|
| Current - IEC | 15 A |
| Current - UL | 15 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Stripping Length | 8 mm |
| Terminal Width | 3.5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
