PA2729.173NL
ActivePulse Electronics
FIXED IND 17.1UH 9.9A 9.1MOHM SM
PA2729.173NL
ActivePulse Electronics
FIXED IND 17.1UH 9.9A 9.1MOHM SM
Description
General part information
PA2729.173NL

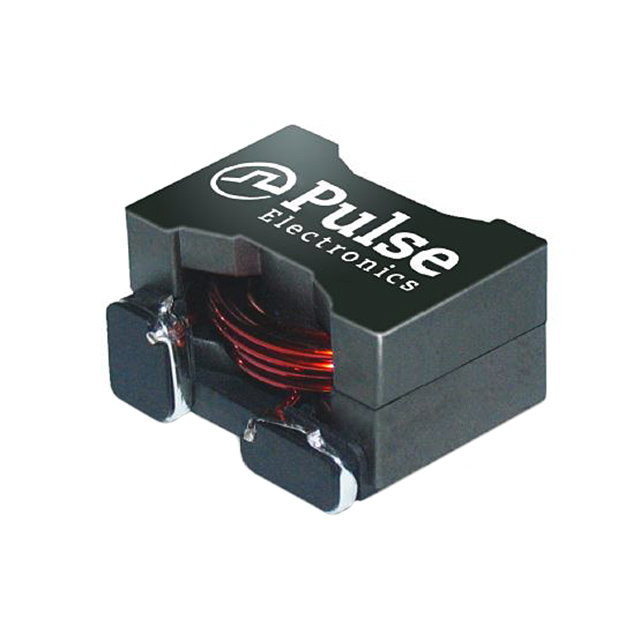

17.1 µH Shielded Wirewound Inductor 9.9 A 9.1mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA2729.173NL |
|---|---|
| Current - Saturation (Isat) | 11.7 A |
| Current Rating | 9.9 A |
| DC Resistance (DCR) (Max) | 9.1 mOhm |
| Height - Seated (Max) | 0.48 in |
| Inductance | 17.1 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.875 in |
| Size / Dimension Width | 0.75 in |
| Tolerance | 15 % |
| Type | Wirewound |
