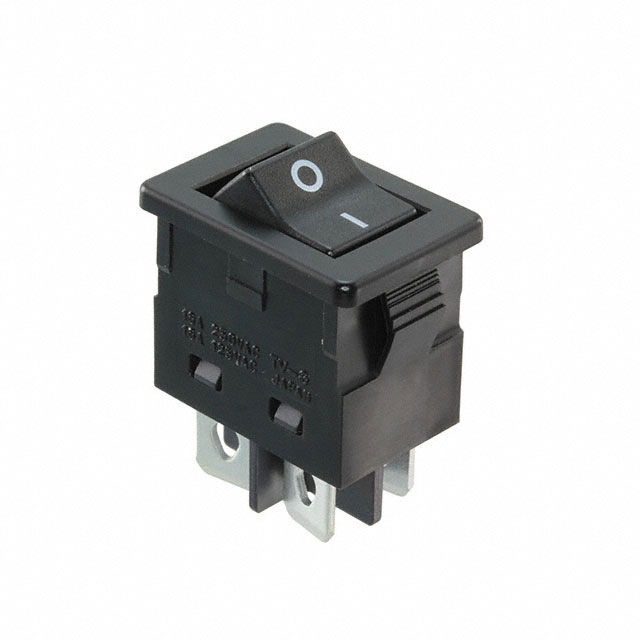

Specification	A8WD-1163

Actuator Marking	O
Actuator Type	Concave (Standard V)
Approval Agency	cULus, UL, EN
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating	16 A
Electrical Life (Cycles)	10000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Length	22.3 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	14.8 mm
Switch Function	On-Off
Termination Length	0.25 in
Termination Style	Solder, Quick Connect
Voltage Rating - AC	125 V
