Specification	MKP1848635704P2

Applications	DC Filtering, DC Link, Automotive
Capacitance	35 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4 mOhm
Features	Low ESR
Height - Seated (Max)	1.772 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	1.654 in
Size / Dimension Width	1.181 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	700 VDC

MKP1848 Series

Part	Capacitance	Termination	Mounting Type	Dielectric Material	ESR (Equivalent Series Resistance)	Applications	Tolerance	Features	Operating Temperature (Min)	Operating Temperature (Max)	Package Leads	Package Name	Lead Spacing	Height - Seated (Max)	Voltage Rating - DC	Ratings	Size / Dimension Length	Size / Dimension Width	Package / Case
Vishay Dale MKP1848612704P4	12 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	10 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C	4 Leads	Radial	1.476 in	1.398 in	700 VDC	AEC-Q200	1.693 in	0.728 in
Vishay Dale MKP1848622454P2	22 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	7.5 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C			1.476 in	1.516 in	450 V	AEC-Q200	1.693 in	0.846 in	Radial

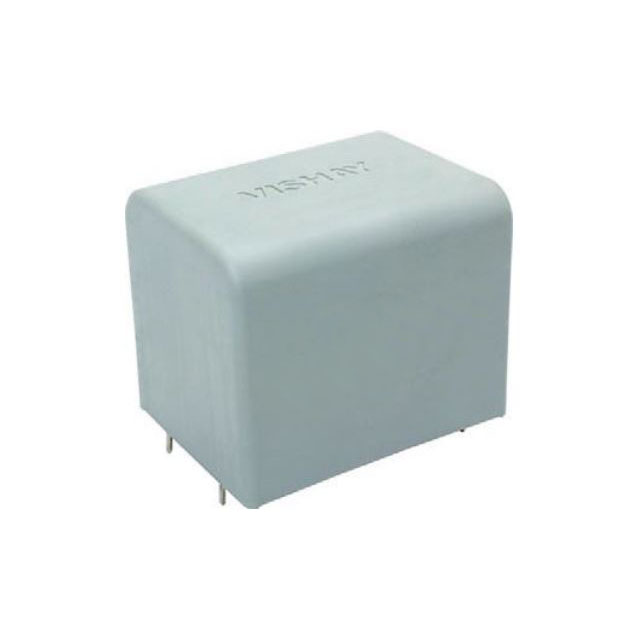

Vishay Dale MKP1848560094P4	6 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	16 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C	4 Leads	Radial	1.476 in	1.398 in	900 V	AEC-Q200	1.693 in	0.728 in
Vishay Dale MKP1848622704P4	22 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	5.5 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C	4 Leads	Radial	1.476 in	1.732 in	700 VDC	AEC-Q200	1.654 in	0.945 in
Vishay Dale MKP1848520914K2	2 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	23 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C			1.083 in	0.984 in	1.1 kVDC	AEC-Q200	1.26 in	0.591 in	Radial
Vishay Dale MKP1848612914Y5	12 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	13 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C			2.067 in	1.772 in	1.1 kVDC	AEC-Q200	2.264 in	0.984 in	Radial
Vishay Dale MKP1848620454P4	20 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	6 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C	4 Leads	Radial	1.476 in	1.516 in	450 V	AEC-Q200	1.693 in	0.846 in
Vishay Dale MKP1848615704P4	15 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	8 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C	4 Leads	Radial	1.476 in	1.398 in	700 VDC	AEC-Q200	1.693 in	0.728 in

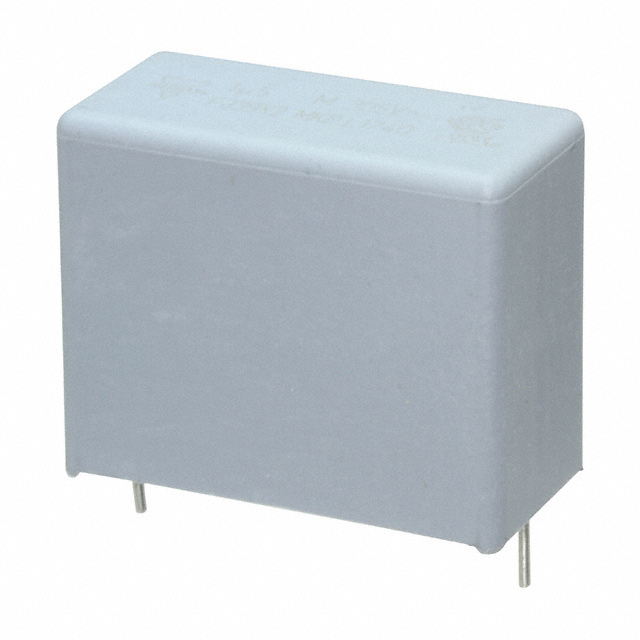

Vishay Dale MKP1848630704Y2	30 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	9 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C			2.067 in	1.772 in	700 VDC	AEC-Q200	2.264 in	0.984 in	Radial
Vishay Dale MKP1848630914Y5	30 µF	PC Pins	Through Hole	Metallized Polypropylene (PP)	5 mOhm	Automotive DC Filtering DC Link	5 %	Low ESR	-40 °C	105 °C	4 Leads	Radial	2.067 in	1.772 in	1.1 kVDC	AEC-Q200	2.264 in	1.772 in
