Specification	1301450031

Approval Agency	UL, CSA
Connector Style	NEMA L5-20R
Connector Type	Receptacle, Female Sockets
Current Rating	20 A
Features	Locking Blade, Cord-Clamp Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Termination	Screw
Voltage Rating	125 V

130145 Series

Safeway Plug with Locking Blade, 4 Pole/5 Wire, NEMA L22-30, 3ø, 480V, Yellow

Part	Mounting Type	Termination	Approval Agency	Connector Style	Voltage Rating	Connector Type	Number of Positions	Features	Current Rating	Voltage Rating (Phase)	Voltage Rating (Minimum)	Voltage Rating (Maximum)

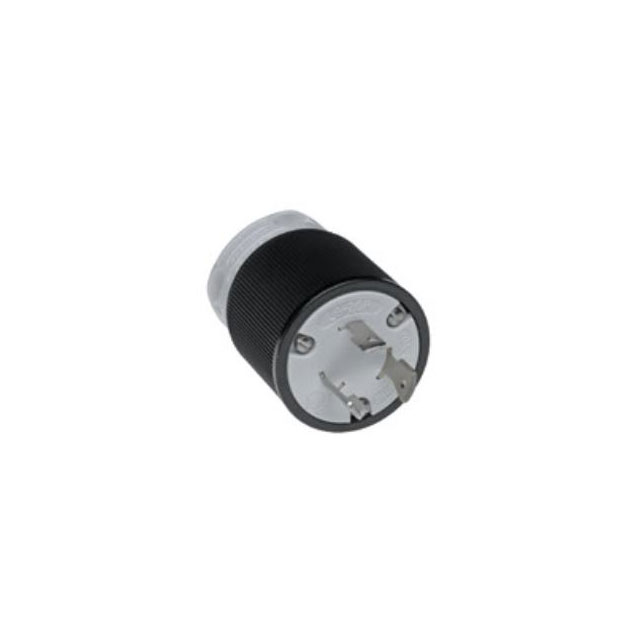

Molex 1301450011	Free Hanging (In-Line)	Screw	CSA UL	NEMA L6-20P	250 V	Male Blades Plug	3	Cord-Clamp Strain Relief Locking Blade	20 A
Molex 1301450090	Free Hanging (In-Line)	Screw	CSA UL	NEMA L23-30R	600 V	Female Sockets Receptacle		Cord-Clamp Strain Relief Locking Blade	30 A
Molex 1301450013	Free Hanging (In-Line)	Screw	CSA UL	NEMA L7-20R	277 VAC	Male Blades Plug	3	Cord-Clamp Strain Relief Locking Blade	20 A
Molex 1301450080	Free Hanging (In-Line)	Screw	CSA UL	NEMA L16-30R	480 VAC 480 VAC	Female Sockets Receptacle	4	Cord-Clamp Strain Relief Locking Blade	30 A	3 Phase

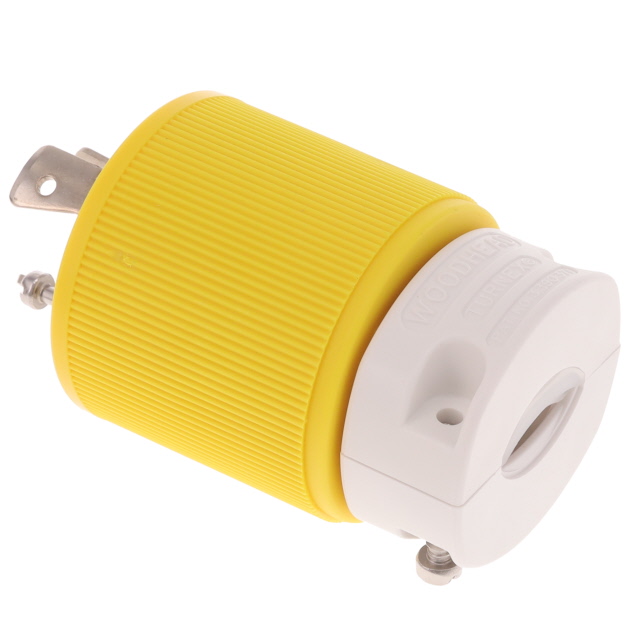

Molex 1301450010	Free Hanging (In-Line)	Screw	CSA UL	NEMA L5-20P	125 V	Male Blades Plug	3	Cord-Clamp Strain Relief Locking Blade	20 A
Molex 1301450078	Free Hanging (In-Line)	Screw	CSA UL	NEMA L15-30R	250 V	Female Sockets Receptacle	4	Cord-Clamp Strain Relief Locking Blade	30 A	3 Phase	250 VAC	250 V
Molex 1301450012	Free Hanging (In-Line)	Screw	CSA UL	NEMA L6-20P	250 V	Male Blades Plug	3	Cord-Clamp Strain Relief Locking Blade	20 A
Molex 1301450023	Free Hanging (In-Line)	Screw	CSA UL	NEMA L22-20P	480 VAC 480 VAC	Male Blades Plug	4	Cord-Clamp Strain Relief Locking Blade	20 A	3 Phase
Molex 1301450022	Free Hanging (In-Line)	Screw	CSA UL	NEMA L21-20P	208 VAC 208 VAC	Male Blades Plug	5	Cord-Clamp Strain Relief Locking Blade	20 A	3 Phase
Molex 1301450057	Free Hanging (In-Line)	Screw	CSA UL	NEMA L16-30P	480 VAC 480 VAC	Male Blades Plug	4	Cord-Clamp Strain Relief Locking Blade	30 A	3 Phase
