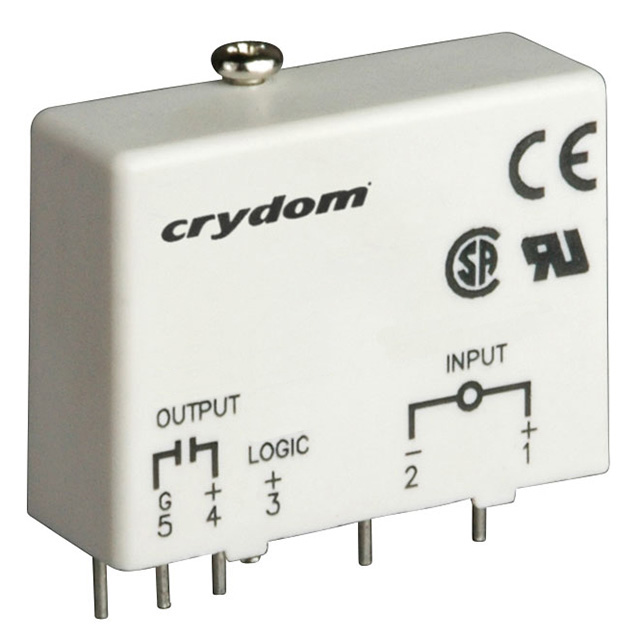

IDC5
ActiveSensata-Crydom
DC INPUT MODULE 24V
IDC5
ActiveSensata-Crydom
DC INPUT MODULE 24V
Description
General part information
IDC5
DC Input Module Output Module 16mA 5VDC Output 24VDC Supply
Technical Specifications
Parameters and characteristics for this part
| Specification | IDC5 |
|---|---|
| Color | White |
| Current - Input | 34 mA |
| Current - Output | 16 mA |
| Features | Hold Down Screw |
| Style | Standard |
| Turn Off Time | 1 ms |
| Turn On Time | 1 ms |
| Type | DC Input Module |
| Voltage - Input | 24 V |
| Voltage - Output | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
