CDH74NP-680KC
ActiveSumida America Components Inc.
FIXED IND 68UH 1A 350 MOHM SMD
CDH74NP-680KC
ActiveSumida America Components Inc.
FIXED IND 68UH 1A 350 MOHM SMD
Description
General part information
CDH74NP-680KC

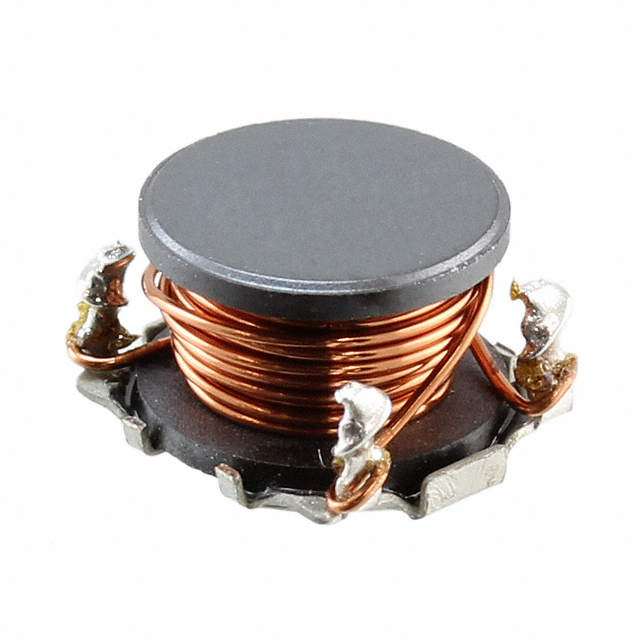

68 µH Unshielded Drum Core, Wirewound Inductor 1 A 350mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDH74NP-680KC |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 350 mOhm |
| Height - Seated (Max) | 0.205 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
