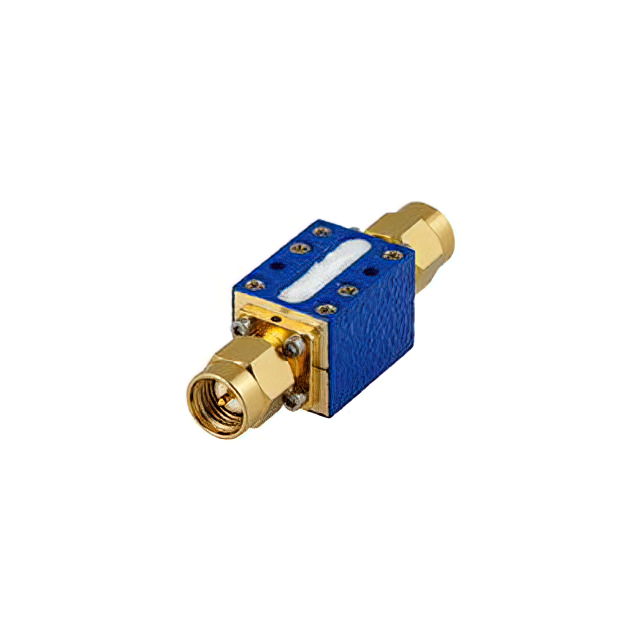

ZHSS-8G-S+
ActiveMini-Circuits
RF FILTER HIGH PASS 16GHZ MODULE
ZHSS-8G-S+
ActiveMini-Circuits
RF FILTER HIGH PASS 16GHZ MODULE
Description
General part information
ZHSS-8G-S+
16GHz Center Frequency High Pass RF Filter (Radio Frequency) 16GHz Bandwidth 2dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZHSS-8G-S+ |
|---|---|
| Bandwidth | 16 GHz |
| Filter Type | High Pass |
| Frequency (Center) | 16 GHz |
| Height (Max) | 12.7 mm |
| Insertion Loss | 2 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 0.7 in |
| Size / Dimension Width | 0.5 in |
