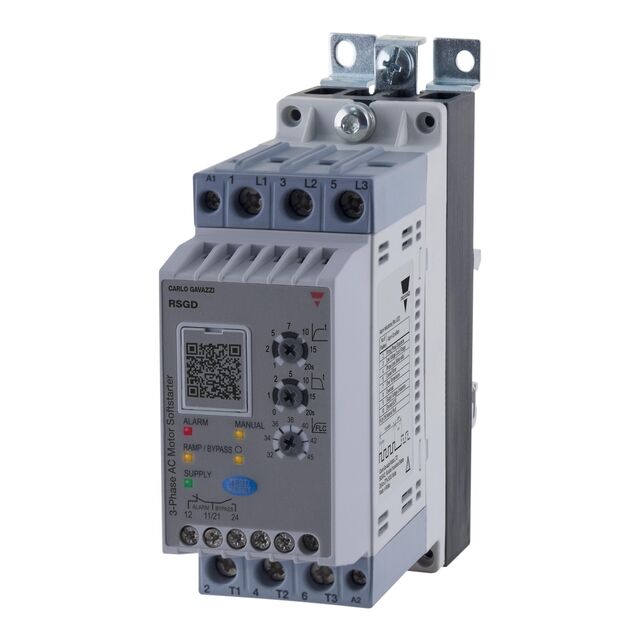

RSGD4045E0VX200
ActiveCarlo Gavazzi Inc.
SOFT STARTER, 2/3-PH, 45A, 110 - 400VAC ROHS COMPLIANT: YES
RSGD4045E0VX200
ActiveCarlo Gavazzi Inc.
SOFT STARTER, 2/3-PH, 45A, 110 - 400VAC ROHS COMPLIANT: YES
Description
General part information
RSGD4045E0VX200
Soft Start / Stop 110 ~ 400VAC Supply 45A 220 ~ 400V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | RSGD4045E0VX200 |
|---|---|
| Control / Drive Type | Soft Start, Stop |
| Current - Output | 45 A |
| Motor Type | AC Motor |
| Mounting Type | DIN Rail |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Module |
| Voltage - Load (Max) | 400 V |
| Voltage - Load (Min) | 220 V |
| Voltage - Supply (Maximum) | 400 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
