4-2295321-8
ActiveTE Connectivity AMP Connectors

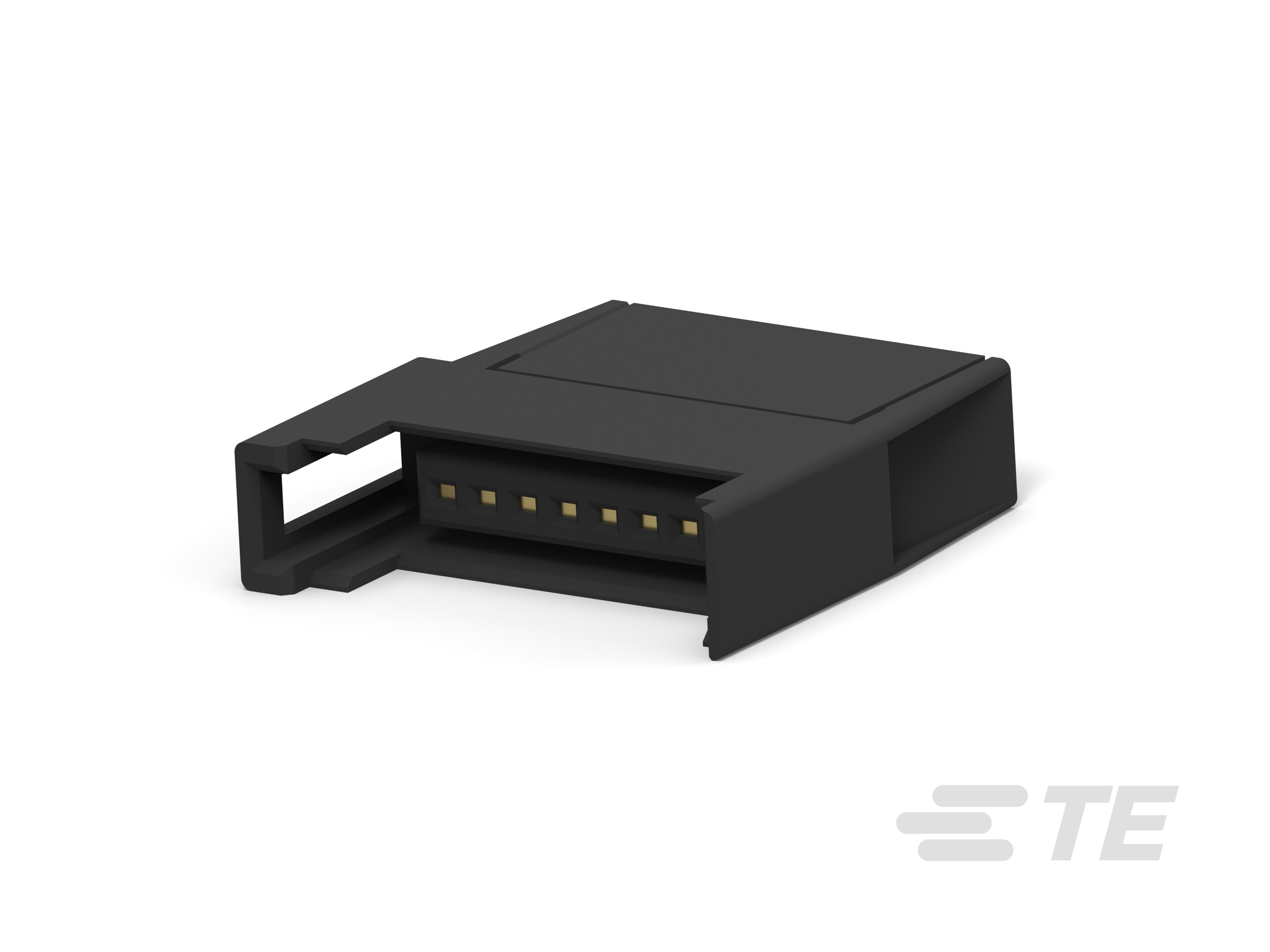

RITS CONN. SOCKET ASSY 8P GREEN TIN
4-2295321-8
ActiveTE Connectivity AMP Connectors
RITS CONN. SOCKET ASSY 8P GREEN TIN
Description
General part information
4-2295321-8
8 Position, Receptacle, Connector Assembly, Crimp, Wire-to-Board, Gold (Au), UL 94V-0, .079 in Centerline, 1 Row, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-2295321-8 |
|---|---|
| Cable Termination | Crimp |
| Color | Green |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87 µin |
| Contact Type | Female Socket |
| Features | Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
