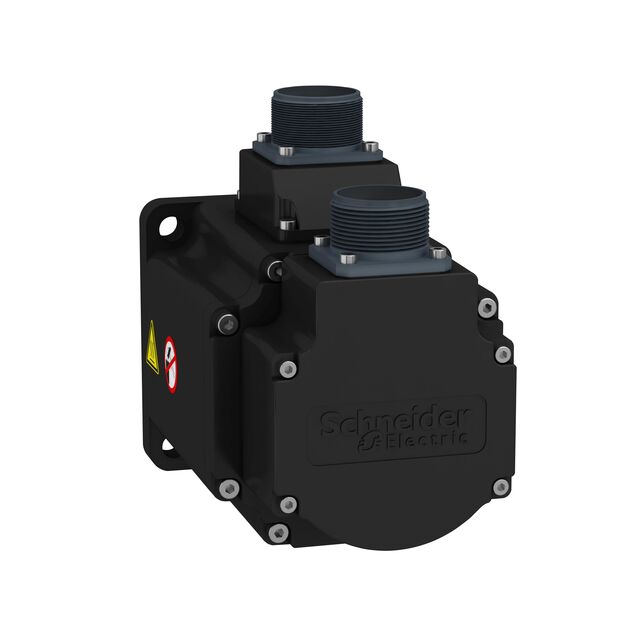

BCH2LH1032CF6C
ActiveSCHNEIDER ELECTRIC
100MM, 1KW, IP65, WO KEY, BRK, M
BCH2LH1032CF6C
ActiveSCHNEIDER ELECTRIC
100MM, 1KW, IP65, WO KEY, BRK, M
Description
General part information
BCH2LH1032CF6C
AC Motor Servomotor 5000 RPM 1kW Absolute 220VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BCH2LH1032CF6C |
|---|---|
| Diameter - Shaft | 0.87 in |
| Encoder Type | Absolute |
| Features | Brake, Oil Seal |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.772 in |
| Mounting Hole Spacing | 3.74 in |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Power - Rated | 1 kW |
| RPM | 5000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 3180 mNm |
| Torque - Rated (oz-in) | 450.3 oz-in |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
