2007-8807
ActiveWAGO Corporation

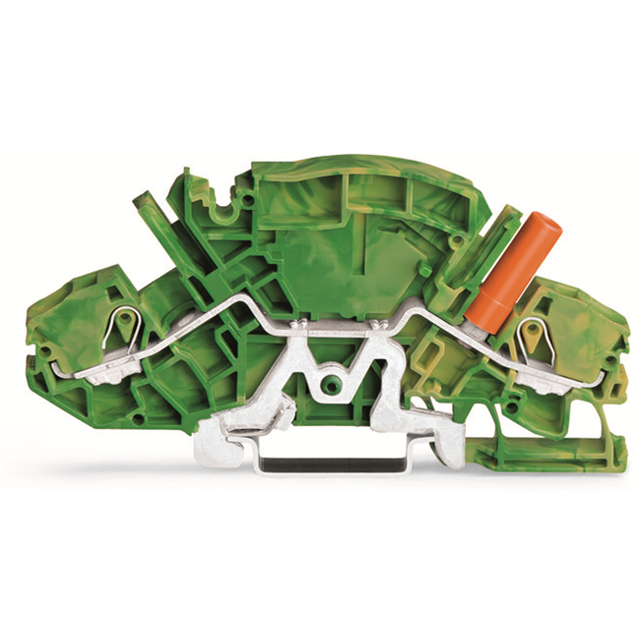

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², PUSH IN
2007-8807
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², PUSH IN
Description
General part information
2007-8807
Terminal Block Connector 1 Position Ground, Earth Green, Yellow 8-20 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2007-8807 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 1 |
| Stripping Length (Max) | 15 mm |
| Stripping Length (Min) | 13 mm |
| Terminal Width | 8 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 20 AWG |
| Wire Gauge or Range - AWG (Min) | 8 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
