Description
General part information

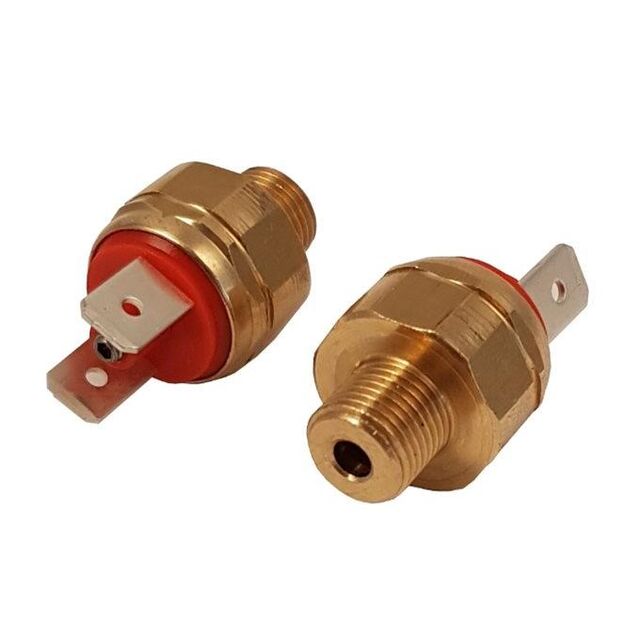

EPS01-BR-G1/8-N-2-NO-AG PRESSURE SWITCH
Pressure Sensor
Technical Specifications
Parameters and characteristics for this part
| Specification | EPS01-BR-G1/8-N-2-NO-AG PRESSURE SWITCH |
|---|---|
| Maximum Pressure | 290.08 PSI |
| Operating Pressure (Max) | 29.01 PSI |
| Operating Pressure (Min) | 0.44 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output | NO |
| Output Type | Analog Voltage |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.13 " |
| Port Feature | Tube |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Quick Connect Size (0.250") | 0.25 in |
| Termination Style | Quick Connect |
| Voltage - Supply | 42 VAC/DC |
