NMNT5-8
ActiveKnowles Syfer
CAP TRIMMER 1-5PF 4000V PNL MNT
NMNT5-8
ActiveKnowles Syfer
CAP TRIMMER 1-5PF 4000V PNL MNT
Description
General part information
NMNT5-8

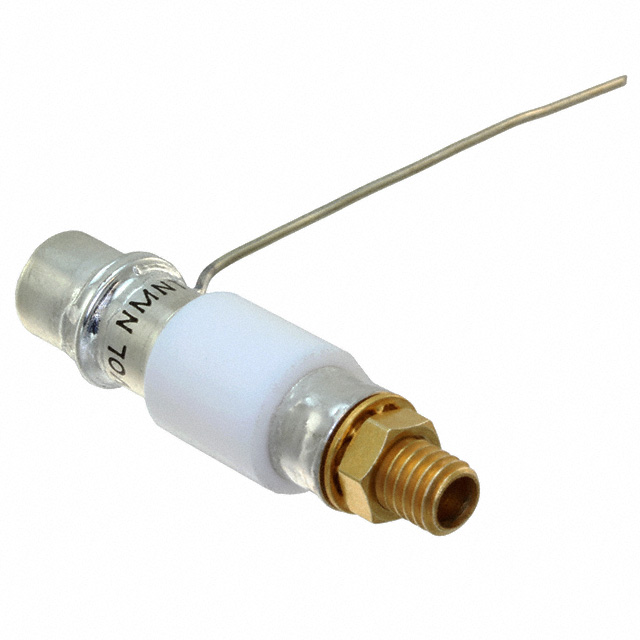

1 ~ 5pF Trimmer Capacitor 4000 V Top Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | NMNT5-8 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 5 pF |
| Capacitance Range (Min) | 1 pF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Non-Magnetic |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Voltage - Rated | 4000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
