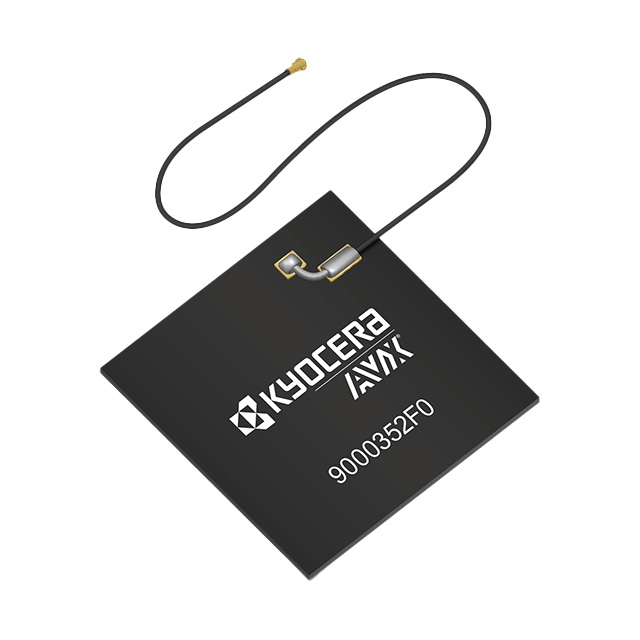

9000352F0-AA10L0100
ActiveKYOCERA AVX
WI-FI 6E/BLUETOOTH FPC ANTENNA F
9000352F0-AA10L0100
ActiveKYOCERA AVX
WI-FI 6E/BLUETOOTH FPC ANTENNA F
Description
General part information
9000352F0-AA10L0100
RF ANTENNA WLAN, Zigbee™ Flat Patch MHF, U.FL Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 9000352F0-AA10L0100 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Zigbee™, WLAN |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 5.5GHz, 2.44GHz, 6.525GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.48 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 2.6 dBi, 3 dBi, 3.2 dBi |
| Height (Max) | 0.063 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max | 2 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | U.FL, MHF |
| VSWR | 3 |
