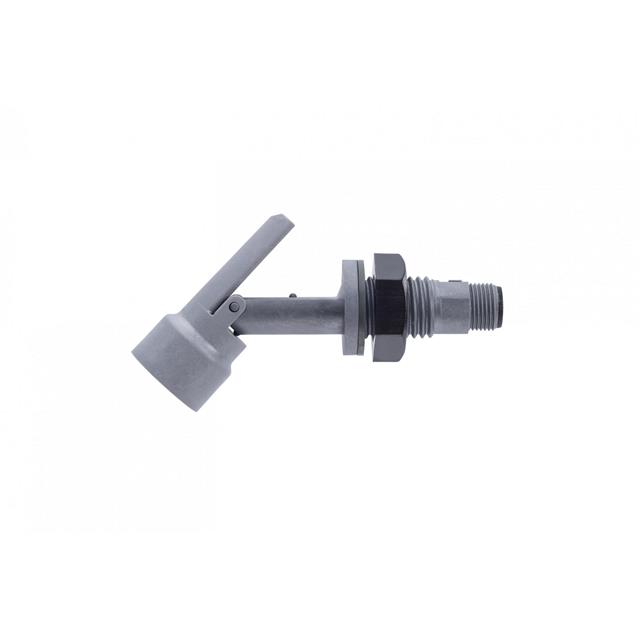

Specification	LLF46YFP

Current	600 mA
Material - Housing & Prism	PPS, Polyphenylene Sulphide
Minimum Liquid Specific Gravity	0.7
Mounting Type	Panel Mount, M12 Thread
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-10 °C
Output Configuration	SPST-NC, NO
Output Type	Switch (Single Float)
Switch Actuation Level	0.394 "
Type	Liquid
Voltage Rating	120 V

LLF40 Series

Part	Output Type	Type	Voltage Rating	Minimum Liquid Specific Gravity	Material - Housing & Prism	Switch Actuation Level	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Current	Output Configuration	Mounting Size
Sensata-Crydom LLF43YFP	Switch (Single Float)	Liquid	120 V	0.7	Nylon	0.394 "	-20 °C	75 °C	M12 Thread Panel Mount	600 mA	NO SPST-NC
Sensata-Crydom LLF46H100RF	Switch (Single Float)	Liquid	300 VAC/DC	0.7	Polyphenylene Sulphide PPS	0.394 "	-10 °C	120 °C	Male NPT	1 A	NO SPST-NC	25.4 mm
Sensata-Crydom LLF44H100RF	Switch (Single Float)	Liquid	300 VAC/DC	0.7	Polypropylene PP	0.394 "	-20 °C	100 °C	Male NPT	1 A	NO SPST-NC	25.4 mm
Sensata-Crydom LLF47YGP	Switch (Single Float)	Liquid	120 V	0.7	Polyvinylidene Fluoride PVDF	0.394 "	-10 °C	105 °C	M12 Thread Panel Mount	600 mA	NO SPST-NC
Sensata-Crydom LLF47H100GG	Switch (Single Float)	Liquid	300 VAC/DC	0.7	Polyvinylidene Fluoride PVDF	0.394 "	-10 °C	105 °C	Male NPT	1 A	NO SPST-NC	25.4 mm
Sensata-Crydom LLF44YFP	Switch (Single Float)	Liquid	120 V	0.7	Polypropylene PP	0.394 "	-20 °C	100 °C	M12 Thread Panel Mount	600 mA	NO SPST-NC
Sensata-Crydom LLF47Y100GG	Switch (Single Float)	Liquid	120 V	0.7	Polyvinylidene Fluoride PVDF	0.394 "	-10 °C	105 °C	Male NPT	600 mA	NO SPST-NC	25.4 mm
Sensata-Crydom LLF43HFP	Switch (Single Float)	Liquid	300 VAC/DC	0.7	Nylon	0.394 "	-20 °C	75 °C	M12 Thread Panel Mount	1 A	NO SPST-NC
Sensata-Crydom LLF48H100RF	Switch (Single Float)	Liquid	300 VAC/DC	0.7	Polypropylene PP	0.394 "	-20 °C	100 °C	Male NPT	1 A	NO SPST-NC	25.4 mm
Sensata-Crydom LLF47HFP	Switch (Single Float)	Liquid	300 VAC/DC	0.7	Polyvinylidene Fluoride PVDF	0.394 "	-10 °C	105 °C	M12 Thread Panel Mount	1 A	NO SPST-NC
