XS512B1MAU20
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M20, 2MM, SPST-NO, 24 TO 240V
XS512B1MAU20
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M20, 2MM, SPST-NO, 24 TO 240V
Description
General part information
XS512B1MAU20

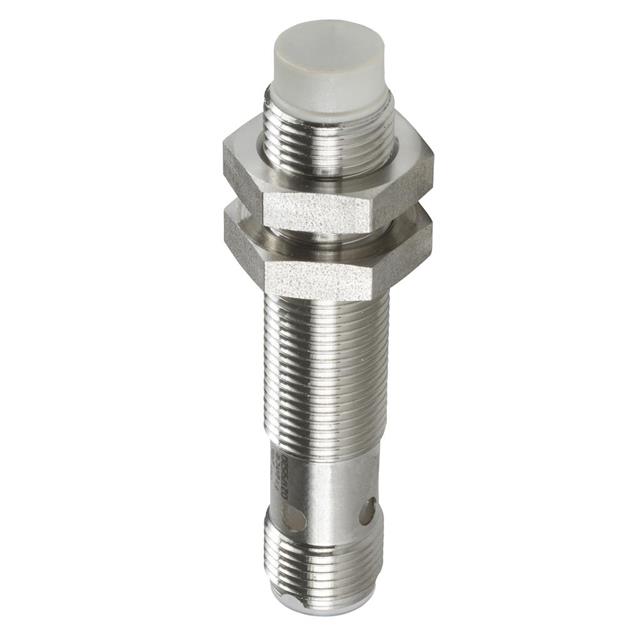

Inductive Proximity Sensor 0.079" (2mm) IP67, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS512B1MAU20 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
