Specification	XQEGRN-H2-0000-000000C01

Color	Green
Current - Max	1 A
Current - Test	350 mA
Height - Seated (Max)	0.068 in
Lumens/Watt	93 lm/W
Luminous Flux	104 lm
Luminous Flux (Maximum)	107 lm
Luminous Flux (Minimum)	100 lm
Mounting Type	Surface Mount
Package / Case	0606 (1616 Metric)
Package Diameter	1616 mm
Package Name	0606, SMD
Size / Dimension Length	0.063 in
Size / Dimension Width	0.063 in
Temperature - Test	25 °C
Thermal Resistance of Package	7 °C/W
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.85 V
Wavelength	528 nm
Wavelength (Maximum)	535 nm
Wavelength (Minimum)	520 nm
Wavelength (Nominal)	528 nm

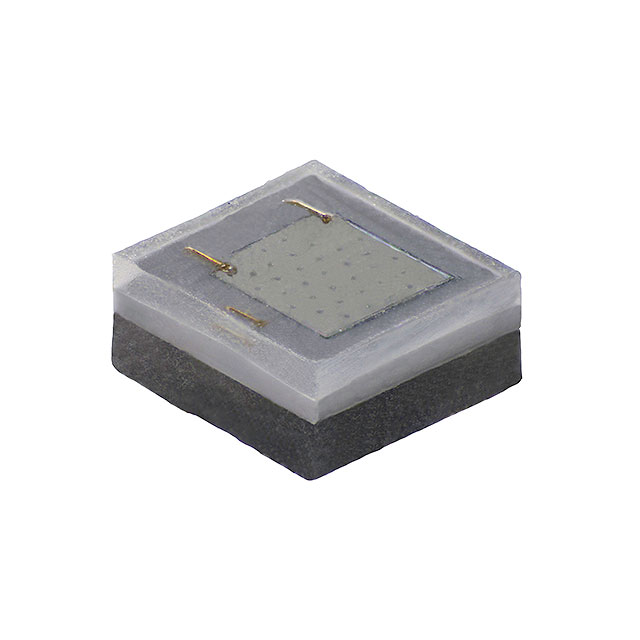

XQEGRN Series

Part	Current - Max	Package Name	Current - Test	Lumens/Watt	Wavelength (Minimum)	Wavelength	Wavelength (Nominal)	Wavelength (Maximum)	Color	Size / Dimension Length	Size / Dimension Width	Package Diameter	Package / Case	Voltage - Forward (Vf) (Typ)	Temperature - Test	Viewing Angle	Height - Seated (Max)	Mounting Type	Luminous Flux (Maximum)	Luminous Flux	Luminous Flux (Minimum)	Thermal Resistance of Package
CreeLED, Inc. XQEGRN-H0-0000-000000G01	1.5 A	0606	350 mA	135 lm/W	520 nm	528 nm	528 nm	535 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.035 in	Surface Mount	139 lm	135 lm	130 lm
CreeLED, Inc. XQEGRN-H0-0000-000000H01	1.5 A	0606	350 mA	144 lm/W	520 nm	528 nm	528 nm	535 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.035 in	Surface Mount	148 lm	144 lm	139 lm
CreeLED, Inc. XQEGRN-00-0000-000000H01	1.5 A	0606	350 mA	144 lm/W	520 nm	528 nm	528 nm	535 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	125 °	0.068 in	Surface Mount	148 lm	144 lm	139 lm
CreeLED, Inc. XQEGRN-H2-0000-000000B03	1 A	0606 SMD	350 mA	87 lm/W	525 nm	530 nm	530 nm	535 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.068 in	Surface Mount	100 lm	97 lm	94 lm	7 °C/W
CreeLED, Inc. XQEGRN-00-0000-000000K02	1.5 A	0606	350 mA	160 lm/W	520 nm	525 nm	525 nm	530 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	125 °	0.068 in	Surface Mount	164 lm	160 lm	156 lm
CreeLED, Inc. XQEGRN-H2-0000-000000D02	1.5 A	0606	350 mA	111 lm/W	520 nm	525 nm	525 nm	530 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.031 in	Surface Mount	114 lm	111 lm	107 lm
CreeLED, Inc. XQEGRN-H0-0000-000000J01	1.5 A	0606	350 mA	153 lm/W	520 nm	528 nm	528 nm	535 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.035 in	Surface Mount	156 lm	152 lm	148 lm
CreeLED, Inc. XQEGRN-H0-0000-000000J02	1.5 A	0606	350 mA	153 lm/W	520 nm	525 nm	525 nm	530 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.035 in	Surface Mount	156 lm	152 lm	148 lm
CreeLED, Inc. XQEGRN-H0-0000-000000K02	1.5 A	0606	350 mA	160 lm/W	520 nm	525 nm	525 nm	530 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	130 °	0.035 in	Surface Mount	164 lm	160 lm	156 lm
CreeLED, Inc. XQEGRN-00-0000-000000G03	1.5 A	0606	350 mA	135 lm/W	525 nm	530 nm	530 nm	535 nm	Green	0.063 in	0.063 in	1616 mm	0606 (1616 Metric)	2.85 V	25 °C	125 °	0.068 in	Surface Mount	139 lm	135 lm	130 lm
