Description
General part information

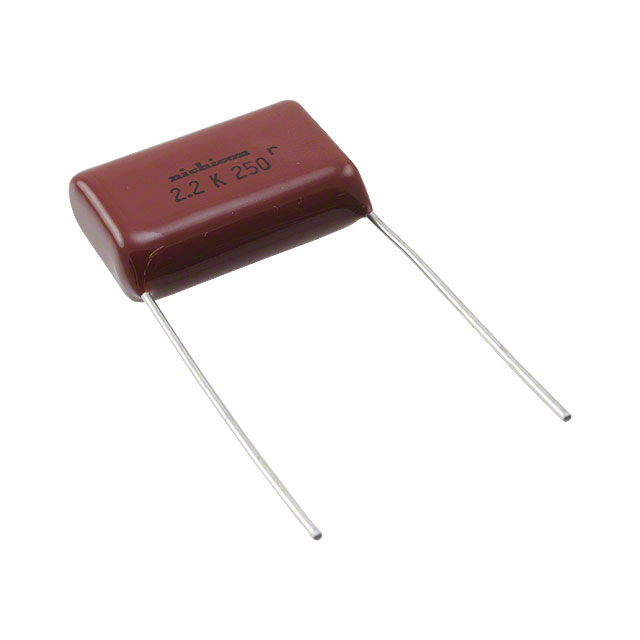

QXK2E225KTPTZH
2.2 µF Film Capacitor 125V 250V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QXK2E225KTPTZH |
|---|---|
| Applications | General Purpose |
| Capacitance | 2.2 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.78 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Width | 0.394 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 250 VDC |
