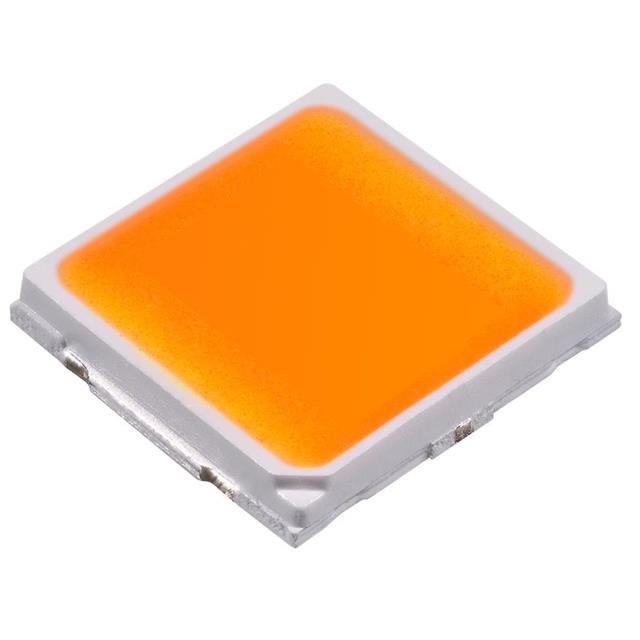

JR5050CWT-E-H57EB0000-N0000001
ActiveCreeLED, Inc.
LED J COOL WHITE 5700K
JR5050CWT-E-H57EB0000-N0000001
ActiveCreeLED, Inc.
LED J COOL WHITE 5700K
Description
General part information
JR5050CWT-E-H57EB0000-N0000001
LED Lighting J White, Cool 5700K 3-Step MacAdam Ellipse 5.63V 400mA 120° 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | JR5050CWT-E-H57EB0000-N0000001 |
|---|---|
| CCT (K) | 5700 K |
| CCT Description | 3-Step MacAdam Ellipse |
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 1 A |
| Current - Test | 400 mA |
| Flux | 448 lm |
| Flux (Typical) | 421 lm |
| Height - Seated (Max) | 0.037 in |
| Lumens/Watt | 199 lm/W |
| Mounting Type | Right Angle, Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.197 in |
| Thermal Resistance of Package | 1.2 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 5.63 V |
